Automatic sliding doors

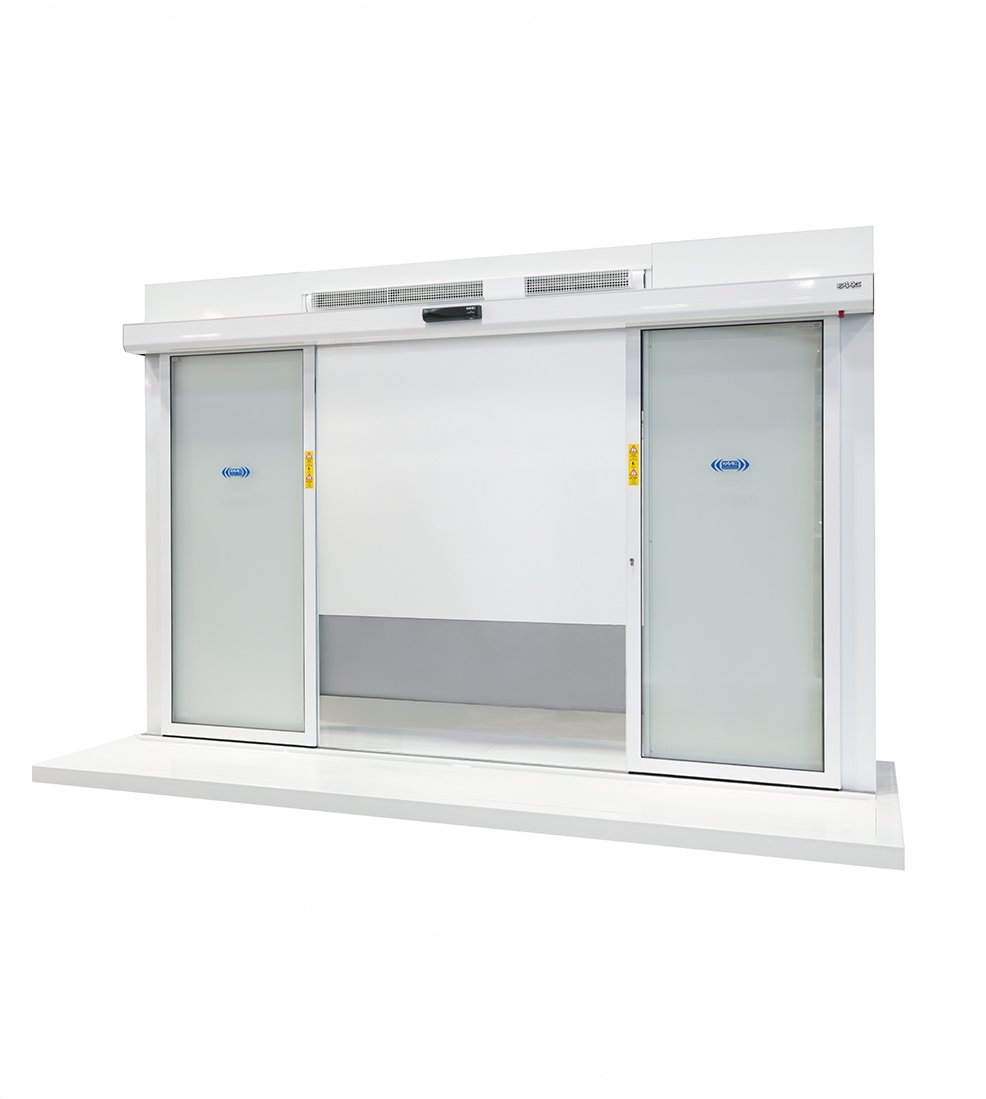

TK35 RC 3 Automatic Burglar-Proof Entrance with Built-in Air Curtain

Complete automatic door consisting of a robust self-supporting extruded aluminium frame with 35 mm profiles, featuring a special anti-intrusion profile.
Shatterproof glazing in class P5A from 44.6/10/33.2, on request, with low-emission characteristic, or in class P6B from 66.8-6-33.2.
Certified both with and without built-in air curtain.
Flush-mounted stainless steel floor guide with continuous ground track across the entire width of the sliding doors.
Finishing of doors and structure by oxidation or painting in RAL colours.
Multi-point security lock system installed on the vertical uprights of the mobile doors.
Thermal and acoustic closure by perimeter brushes.
Door life cycle: 1 million cycles, which contributes to the overall sustainability of the product.

Vano passaggio 850 - 1.800 mm

Descrizione tecnica Download

Simboli dell'innovazione 7

Gallery / Video

FAAC RC 3 Test Video

FAAC TK35 RC 3 Automatic Burglar-Proof Entrance

Example installation: FAAC TK35 RC 3

Focus on TK35 RC 3

Maximum tamper-proof security

A continuous floor guide at the bottom of the door and a special tamper-proof device prevent door leaves from being forced open.

Certification EU

Class RC 3 certification in accordance with the European EN 1627 standard guarantees a high level of security against break-in attempts by experienced thieves using hand tools such as wedges,screwdrivers, pincers and crowbars.

Info tecniche
