Bollards

JS Series High-Security Bollards

Features common to all JS bollards

Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards.
Interchangeable protective sleeve so that the bollard is always just like new.

JS 48 HA - JS 80 HA

Maintenance can be carried out without removing the bollard. No lifting equipment required.
Able to withstand impact with a truck driven at 50 km/h (JS 48 HA) or 80 km/h (JS 80 HA). P1 penetration rating, still operational after impact.

JS 48 R - JS 80 R

Removable cylinder to allow temporary access.

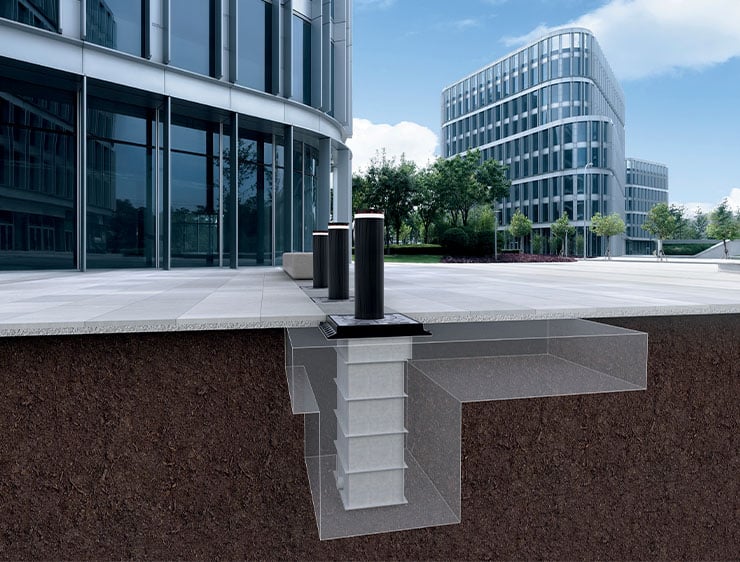

“Shallow Mounted” design: minimum hole depth required.
Able to withstand impact with a truck driven at 50 km/h (JS 48 R) or 80 km/h (JS 80 R). P1 penetration rating.

JS 80 F

“Shallow Mounted” design: minimum hole depth required.
Able to withstand impact with a truck driven at 80 km/h. P1 penetration rating.

Tipo di attuatore Hydraulic Automatic (JS 48/80 HA)
Removable (JS 48/80 R)
Fixed (JS 80 F)
Altezza 1.000 mm

Descrizione tecnica Download

Simboli dell'innovazione 4

Gallery / Video

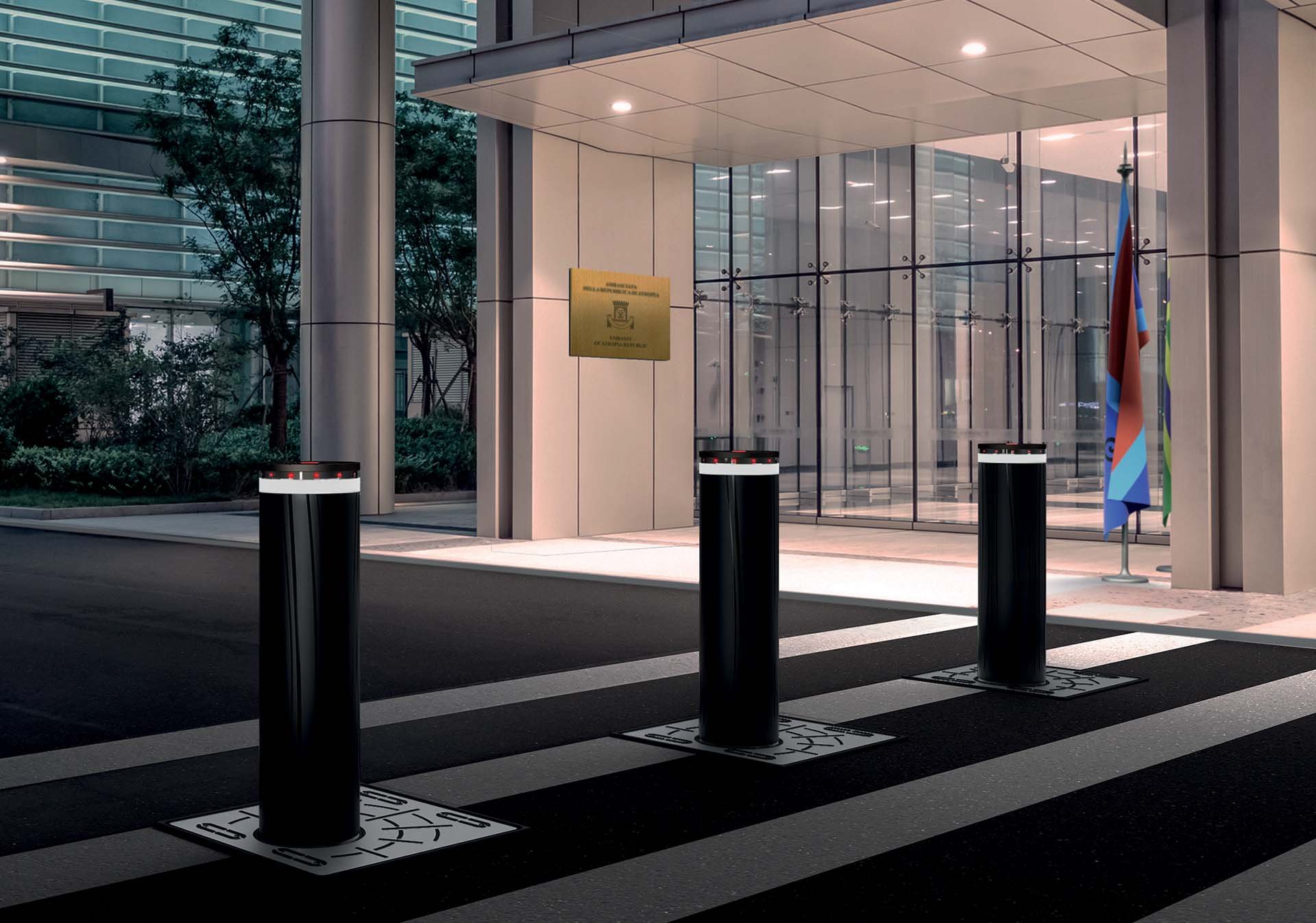

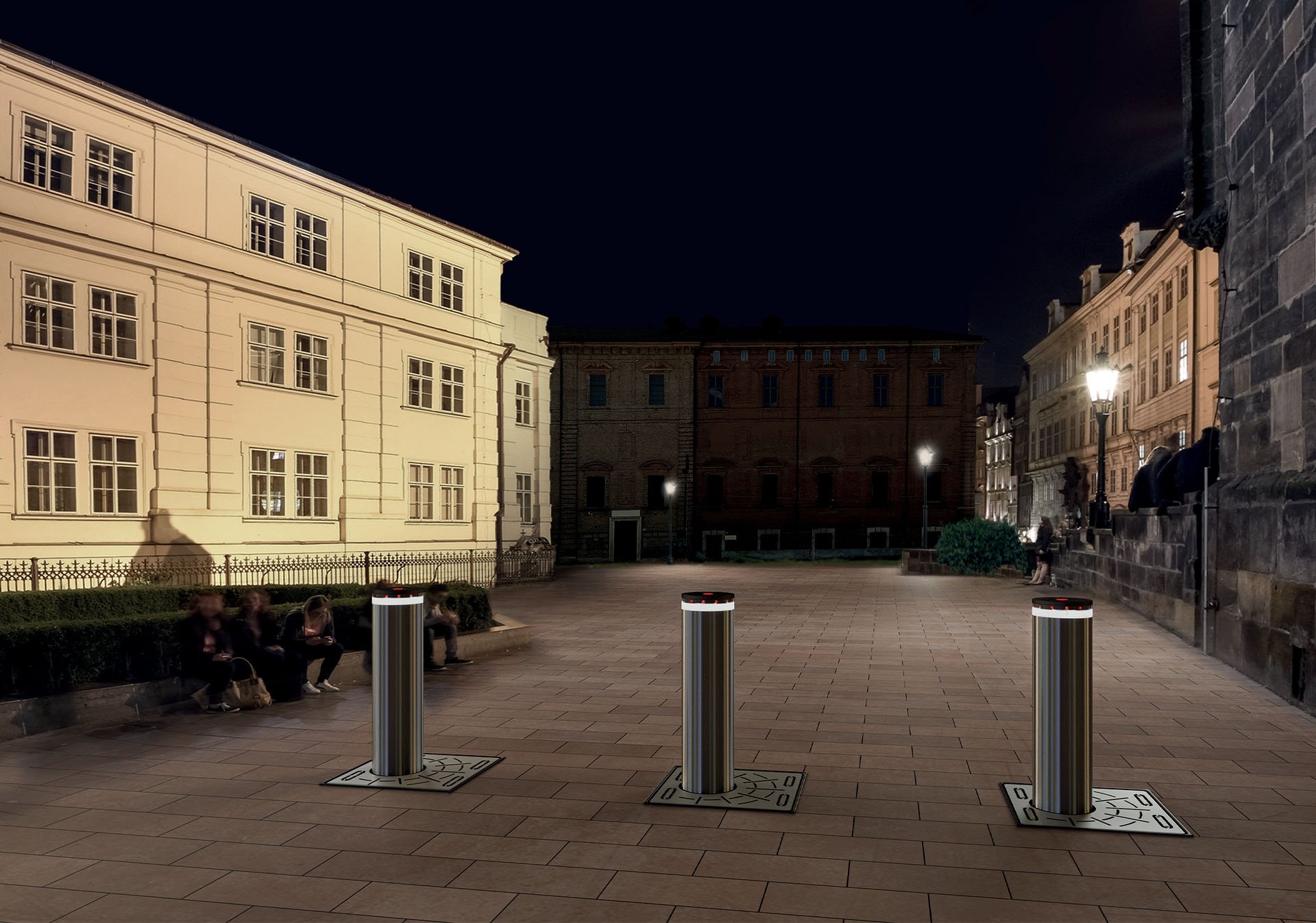

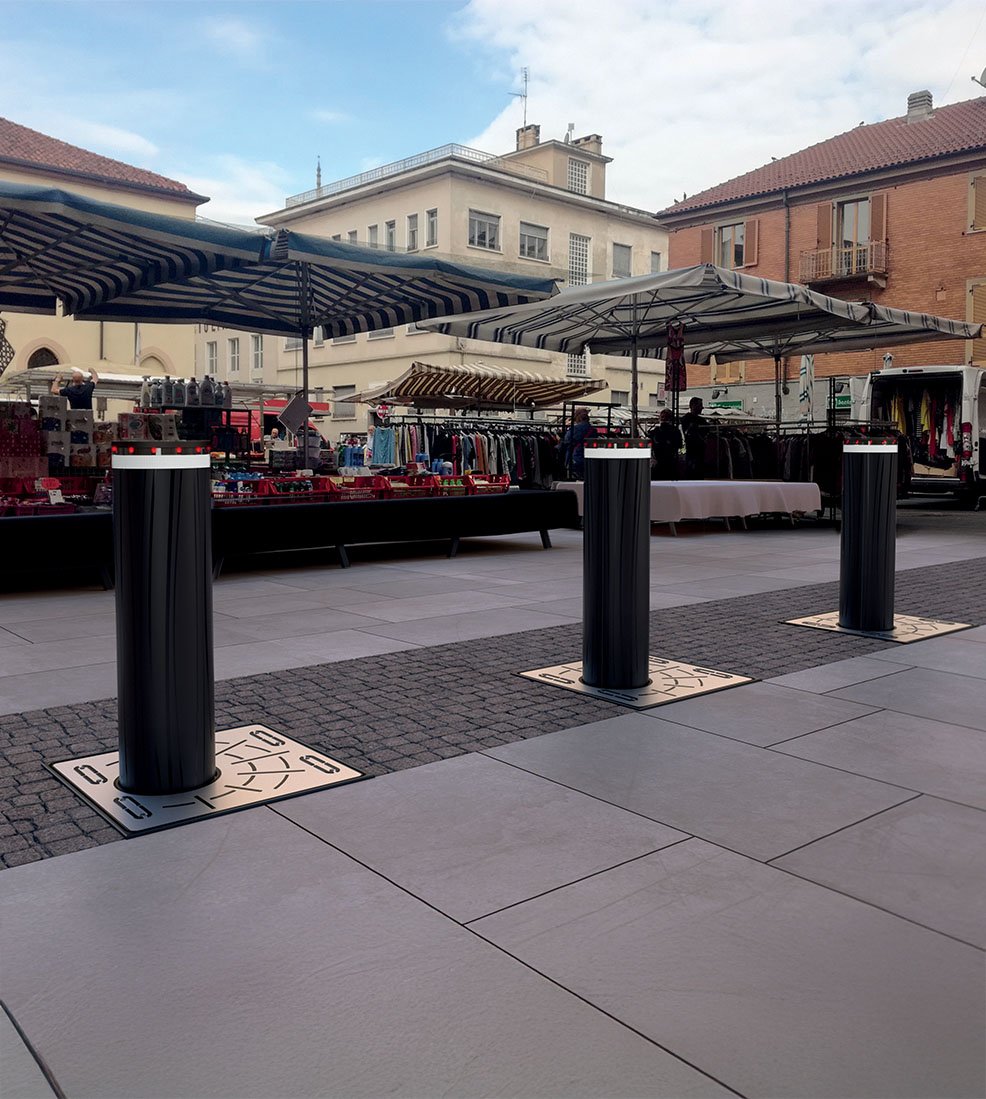

Example installation: JS Series Bollards

Example installation: JS Series Bollards

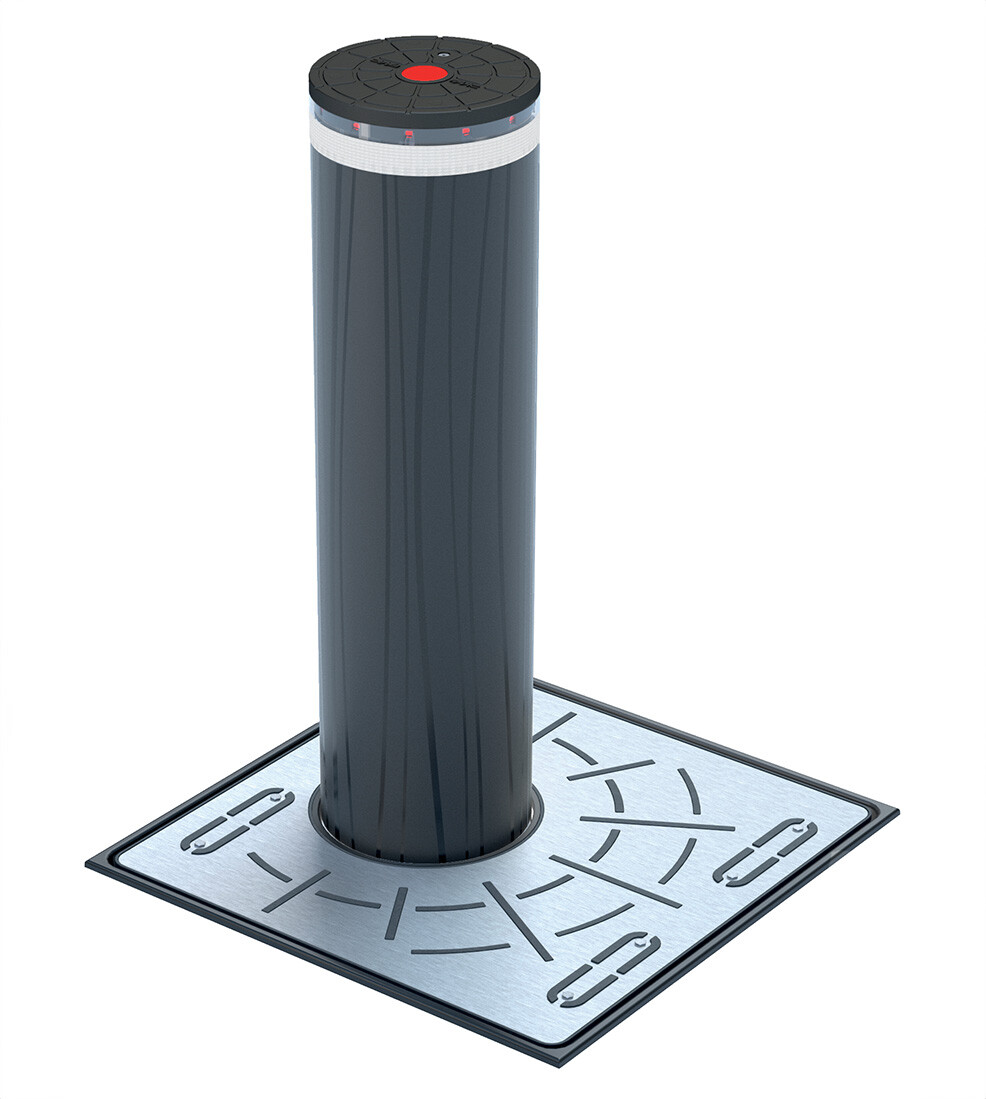

Focus on JS Series Bollards

New range of high security bollards

The FAAC JS-series bollards were conceived with the purpose of maximising safety in all areas that may be threatened by vehicles. JS bollards provide an innovative answer to protecting sensitive buildings, squares, markets, pedestrian areas and places with high traffic.

Non-invasive safety, able not only to protect spaces and people, but also the aesthetics of the surrounding architectural context.

Certified resistance

Crash tests passed perfectly: JS bollards are certified to stop a 7.500 kg truck driven at 50 km/h (JS48) and 80 km/h (JS80), certified operation even after impact.

Safety standards complied with: IWA 14-1, PAS 68, ASTM F2656.

Info tecniche

Informazioni sul prodotto JS Series

Lorem ipsum dolor sit

01

Descrizione tecnica

Model	Item code
JS 48 HA	117001
JS 48 HA EFO	117051
JS 48 HA INOX	117201
JS 48 HA EFO INOX	117251
JS 48 R	117111
JS 48 R INOX	117301
JS 80 HA	117501
JS 80 HA EFO	117551
JS 80 HA INOX	117701
JS 80 HA EFO INOX	117751
JS 80 R	117601
JS 80 R INOX	117801
JS 80 F	117651
JS 80 F INOX	117851

Type of operator Hydraulic automatic (JS 48/80 HA) - Removable (JS 48/80 R) - Fixed (JS 80 F)
Cylinder height from ground 1.000 mm
Cylinder diameter 275 mm
Release device Yes (JS 48/80 HA)
Max power 3.500 W (JS 48/80 HA)
Break in resistance 673.000 J (JS 48 HA/R) - 1.852.000 J (JS 80 HA/R/F)
