Sliding gate automation

C851 230V Gearmotor

Ideal for special applications where fast operation is required and a continuous service (100%).
Irreversibility guaranteed by integrated electric brake on the powerful geared motor 1.1KW.
Speed programming via integrated frequency inverter on the E850S control board.

Peso max anta 1.800 kg
Larghezza max singola anta 20 m
Velocità max 40 m/min

Descrizione tecnica Download

Simboli dell'innovazione 1

Gallery / Video

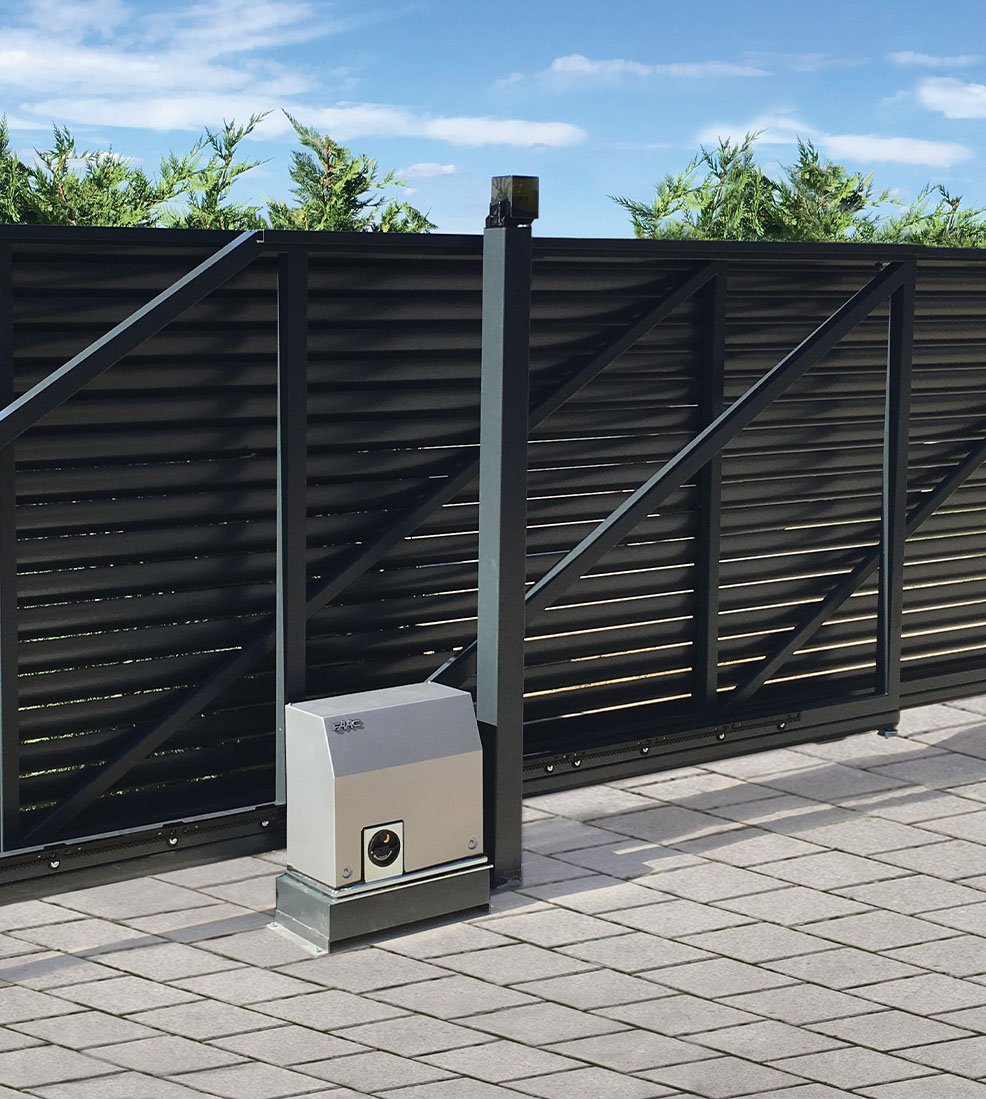

Example installation: C851

FAAC C851 230V Sliding Gate Gearmotor

Focus on C851 Sliding Gate Gearmotor

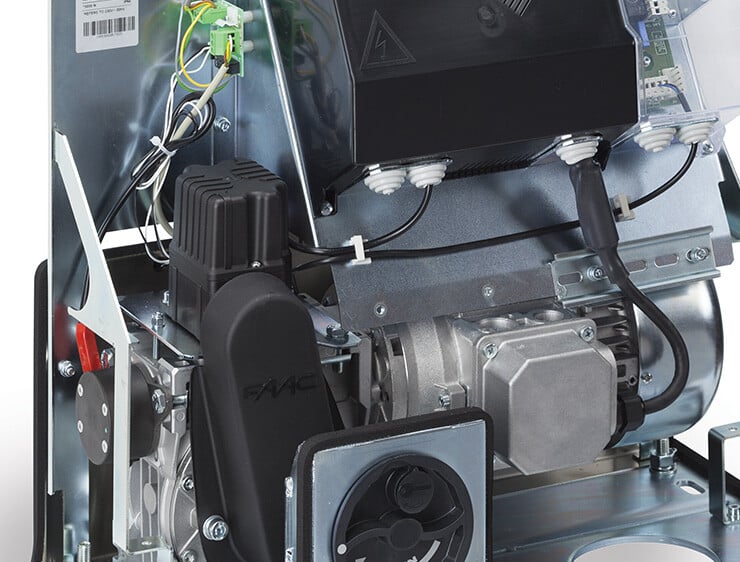

Precise deceleration

Two integrated mechanical limit switches with fine adjustment to guarantee precise deceleration. Plastic protection for belt to prevent finger injury.

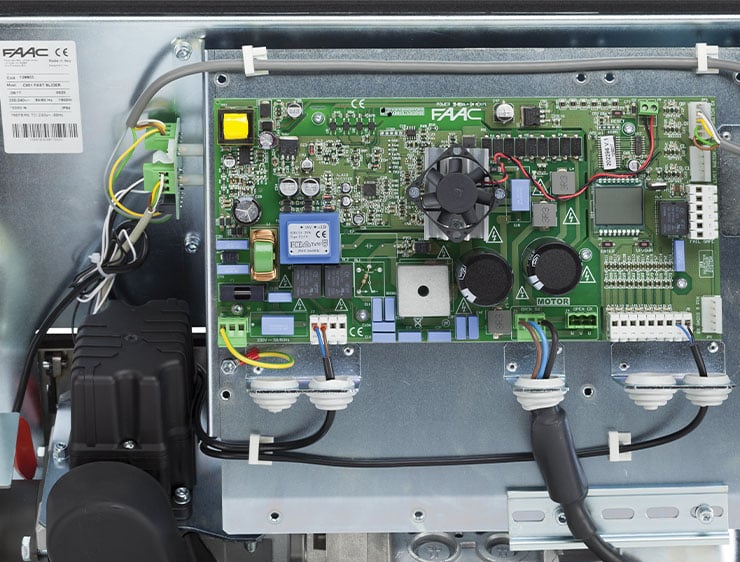

Integrated E850S Control Board

Integrated full feature control panel, easy to program through display and buttons, full range of operating logics available. Control panel protected with dark and transparent covers to help service and maintenance.

Info tecniche

Informazioni sul prodotto C851

Lorem ipsum dolor sit

01

Descrizione tecnica

Model	Item code
C851	109903

Power supply voltage 220-240V ~ 50/60 Hz
Max power 1.800 W
Max expressed force 3.000 N
Max leaf weight 1.800 Kg
Max leaf width 20 m
Max leaf speed 20 ÷ 40 m/min (adjustable)
