A952 Swing Door Automation

The A952 automation, compliant with EN16005, is able to move doors up to a weight of 800 Kg, in continuous use and in absolute silence. It can be installed on escape routes in compliance with EN16005 and is able to meet all the safety requirements of EN13489-1 PLD.
Variable ratio rack and pinion to provide constant spring compression (FAAC PATENT).
Variable ratio parallel shaft gears for effective and smooth movement (FAAC PATENT).
Compact dimensions ideal for fire and smoke vent doors.
The housing cover is made of silver anodized aluminum.

Peso max anta Sliding arm 800 Kg - 700 mm | Articulated arm 700 Kg- 750 mm
Lunghezza anta From 700 to 1600 mm

Descrizione tecnica Download

Simboli dell'innovazione 6

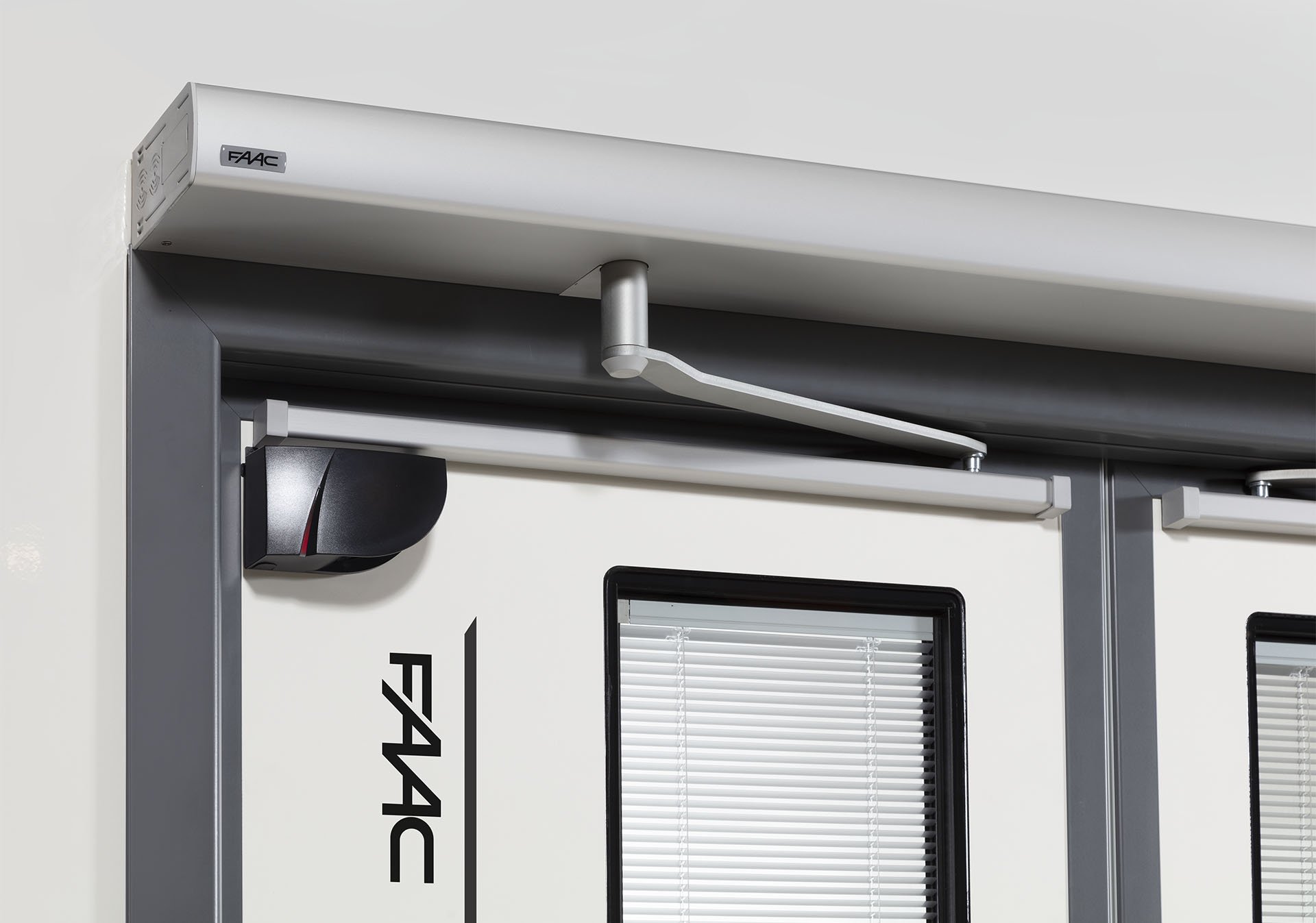

Gallery / Video

Watch the Product Video: FAAC A952

Example installation: A952 on a Double Air-Tight Swing Door

Example installation: A952 on a Fire-Rated Swing Door

Focus on A952 Swing Door Automation

One single product for every application

Thanks to the special spring system, with push and pull function depending on the type of installation (sliding or articulated arm), the A952 automation is characterized not only by the high level of security it can guarantee but also by its extreme versatility.

With a single automation, it is indeed possible to ‘transform’ swing doors by choosing from different uses - standard, emergency exit, fire resistance, or smoke evacuation - adaptable to many areas of applications such as education, airports, hospitals, but also hotels, residential and offices.

An automation that stacks up the numbers

• Compact dimensions 73 x 150 x 715 mm
• Spring tested for more than 1.000.000 cycles
• Maximum dimensions of the door leaf: 1600 mm width and 450 kg weight
• Inertia max 130 Kg·m2, both with sliding arm and articulated arm.

Info tecniche

Informazioni sul prodotto A952

Lorem ipsum dolor sit

01

Descrizione tecnica

Power supply voltage 110-240 V~ - 50/60 Hz
Max power 350 W
Standby power 5 W
Use frequency 100%
Electric motor Motor powered at 24V
Max accessories load 1A - 24V
Electric lock power supply voltage (N.O./N.C.) 24 V / 500 mA max
Dimensions (LxDxH) 715x150x74 mm
Weight 12 Kg
Operation in case of power cut Manual push/pull opening - Spring closing
Max leaf opening angle 100° ÷ 125°
Opening and closing leaf time 4 - 10 s (adjustable)
Partial opening adjustment 10% - 90% of total opening
Pause time 0 - 30 s
Night pause time 0 ÷ 90 s
Encoder As standard
Protection sensor monitoring (EN16005) As standard (may be excluded)
Low energy movement (EN16005) As standard (may be excluded)
Operating ambient temperature -20°C ÷ +55°C
Protection class IP 23 (for internal use only)
Compliance with regulations EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN13849-2

Model	Description	Passage opening	Max leaf weight with articulated arm	Max leaf weight with sliding arm	Item code
A952	With electronic control unit function selector and anodised aluminium cover	700 ÷ 1600 mm	700 Kg - 750mm 150 Kg - 1600 mm	800 Kg - 700mm 150 Kg - 1600 mm	105952
Arms	Articulated push arm				390189
	Standard sliding block arm				390187
	Short sliding block arm				390188
