Automatic swing doors

A951 Internal Swing Door Automation

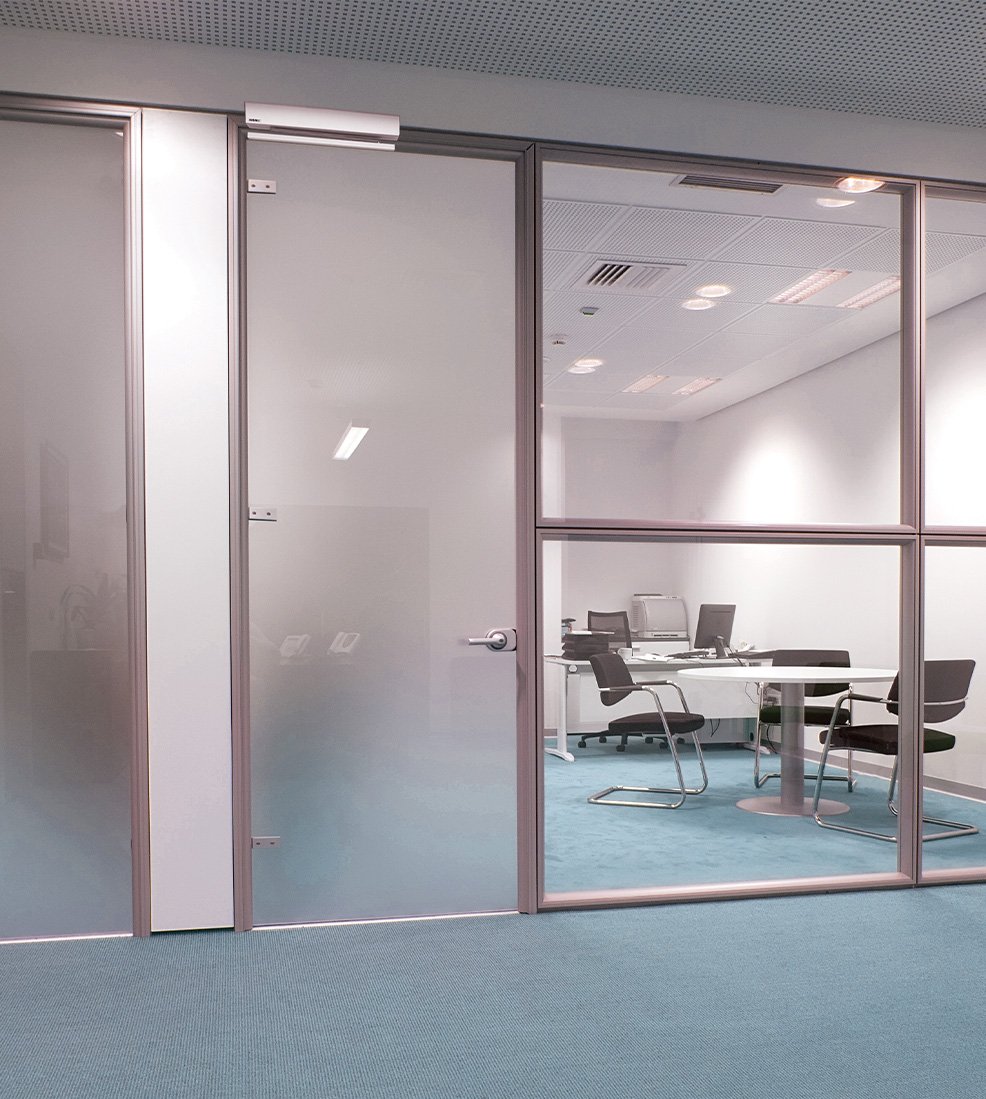

A951 operator opens and closes the internal door silently and smoothly.

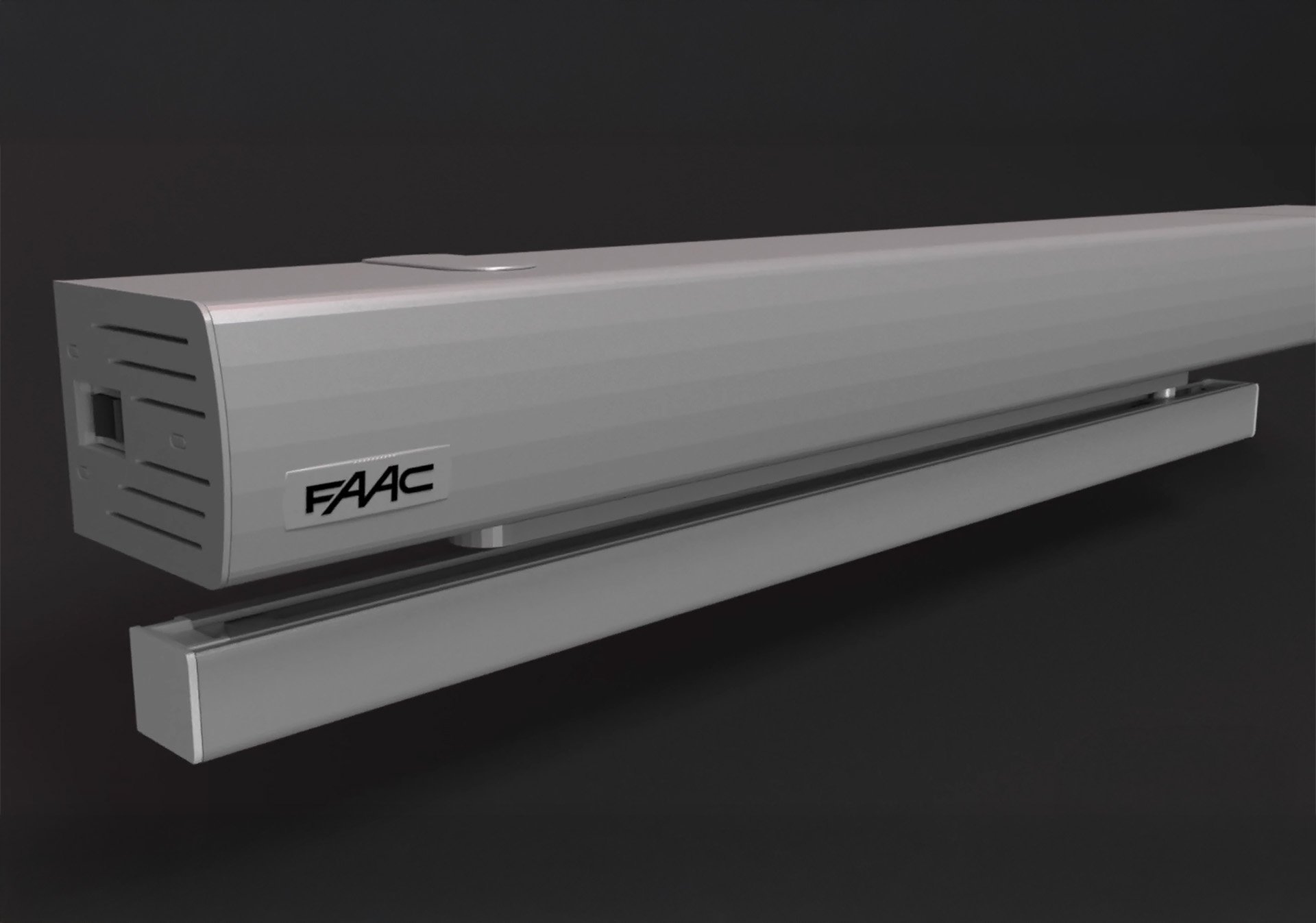

The housing cover is in anodized extruded aluminium.
Manufactured in compliance with the new European safety standards EN16005; speed and forced are programmed depending on door dimensions.
Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and1100-mm wide on continuous duty ensuring the absolute operating safety at any time.

Peso max anta 100 Kg
Lunghezza anta From 700 to 1100 mm

Descrizione tecnica Download

Simboli dell'innovazione 4

Gallery / Video

Watch the Product Video: FAAC A951

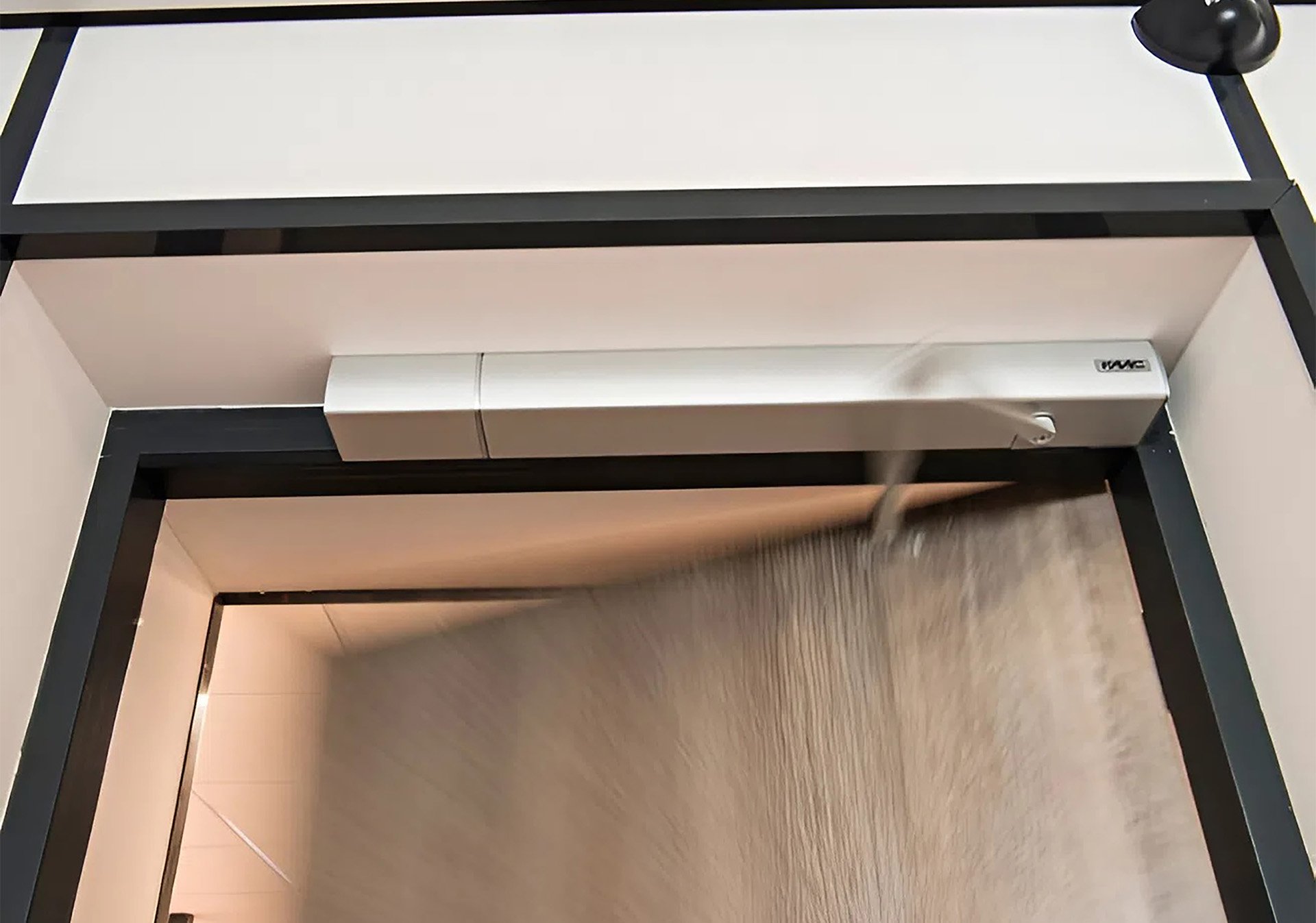

Example Installation: FAAC A951

Focus on A951 Swing Door Automation

Open and close in absolute comfort

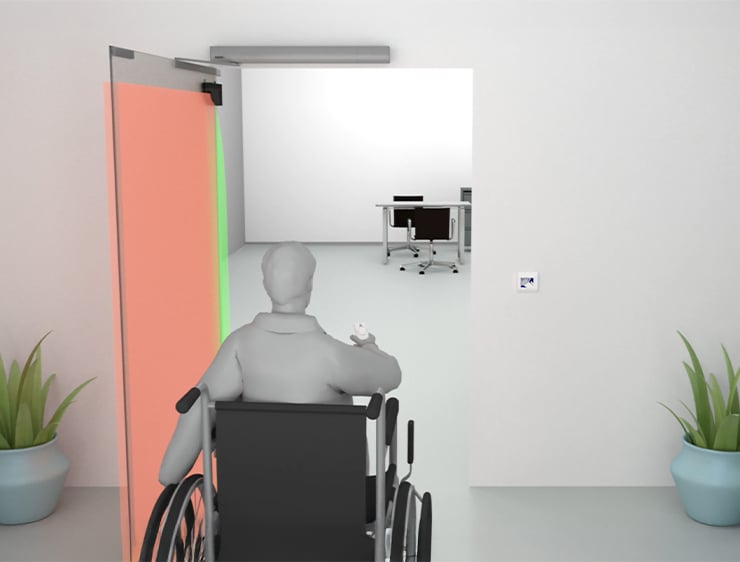

The A951 automated system controls door opening and closing with silent and smooth operation. It allows users to easily open doors via a button, sensor or a remote control. Thanks to the PUSH&GO function, just a touch completely opens the door.

Silent and low-energy consumption

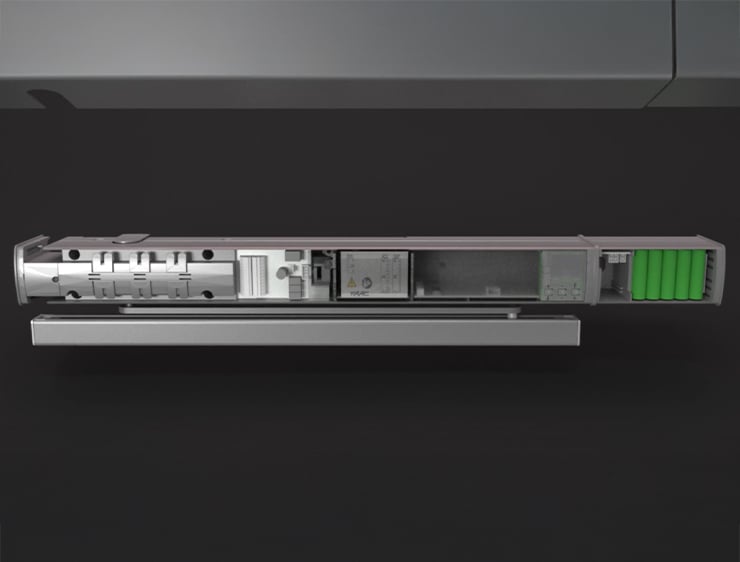

Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and 1100 mm wide on continuous duty ensuring the absolute operating safety at any time offering significant energy savings both during stand-by and when operating.

Info tecniche

Informazioni sul prodotto A951

Lorem ipsum dolor sit

01

Descrizione tecnica

Power supply voltage 220-240 V~ - 50/60 Hz
Max power 100 W
Standby power 5W
Use frequency 100%
Electric lock power supply voltage 25Nm
Electric motor Motor powered at 24V
Max accessories load 1A - 24V
Electric lock power supply voltage (N.O./N.C.) 24 V / 500 mA max
Dimensions (LxDxH) 575x60x70 mm
Weight 7 Kg
Operation in case of power cut Manual push/pull opening
Max leaf opening angle 100° ÷ 125°
Opening and closing leaf time 4 - 10 s (adjustable)
Partial opening adjustment Standard (adjustable)
Pause time 0 - 30 s
Night pause time 0 ÷ 90 s
Encoder As standard
Protection sensor monitoring (EN16005) As standard (may be excluded)
Low energy movement (EN16005) As standard (may be excluded)
Operating ambient temperature -20°C ÷ +55°C
Protection class IP 23 (for internal use only)
Compliance with regulations EN16005; EN61000-6-2; EN61000-6-3 ; EN13849

Model	Description	Passage opening	Max leaf weight with articulated arm	Max leaf weight with sliding arm	Item code
A951	With electronic control unit function selector and anodised aluminium cover	700 ÷ 1100 mm	100 Kg	100 Kg	105951
Arms	Sliding arm				390167

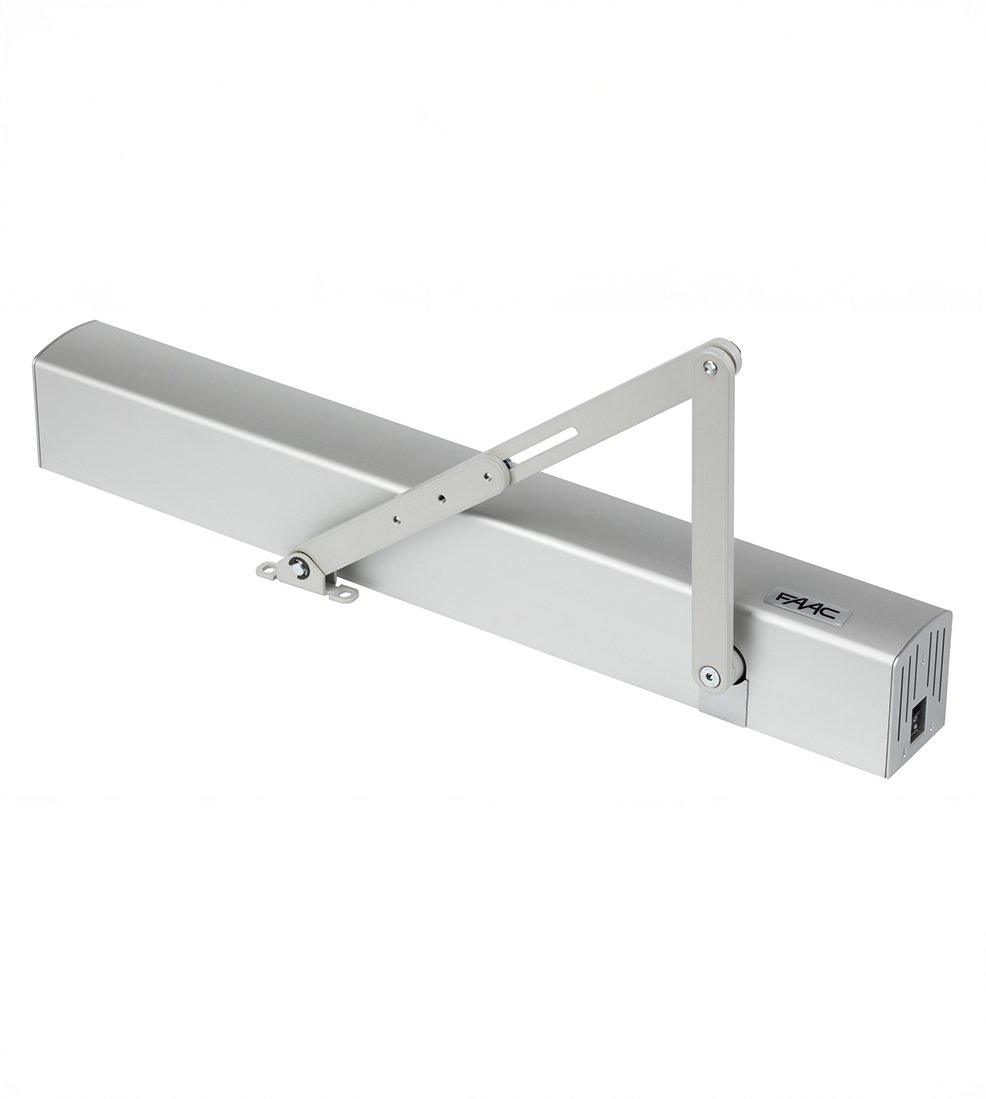

Arms	Articulated arm				390169
