Automatic swing doors

950N2 Swing Door Automation

950N2 automation, compliant with EN16005, allows to move doors weighing more than 360 Kg silently and in continuous use.
The housing cover is made of silver anodized aluminum.

Peso max anta From 286 to 367 Kg
Lunghezza anta From 700 to 1400 mm

Descrizione tecnica Download

Simboli dell'innovazione 2

Gallery / Video

Watch the Product Video: FAAC 950N2

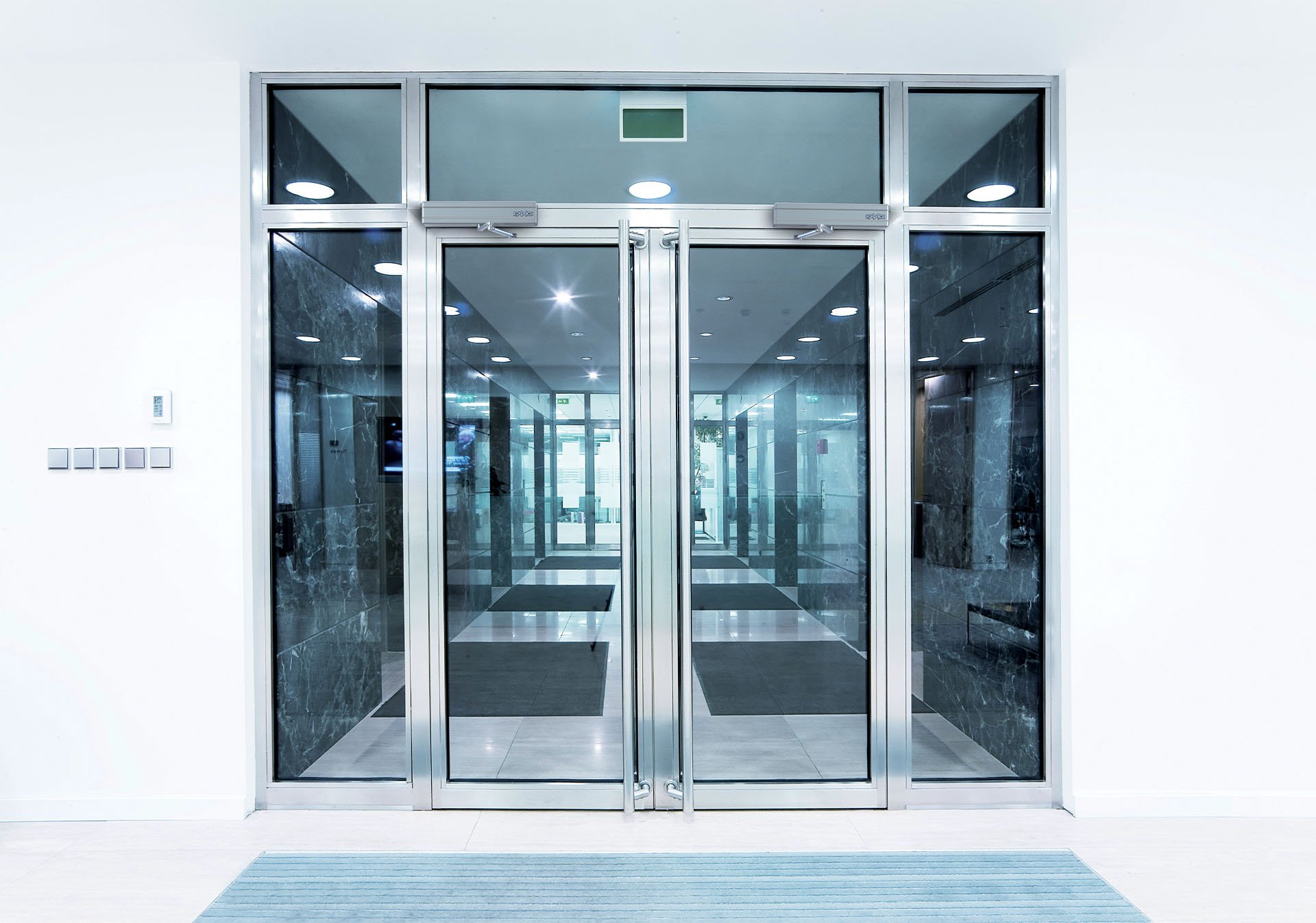

Example Installation: FAAC 950N2

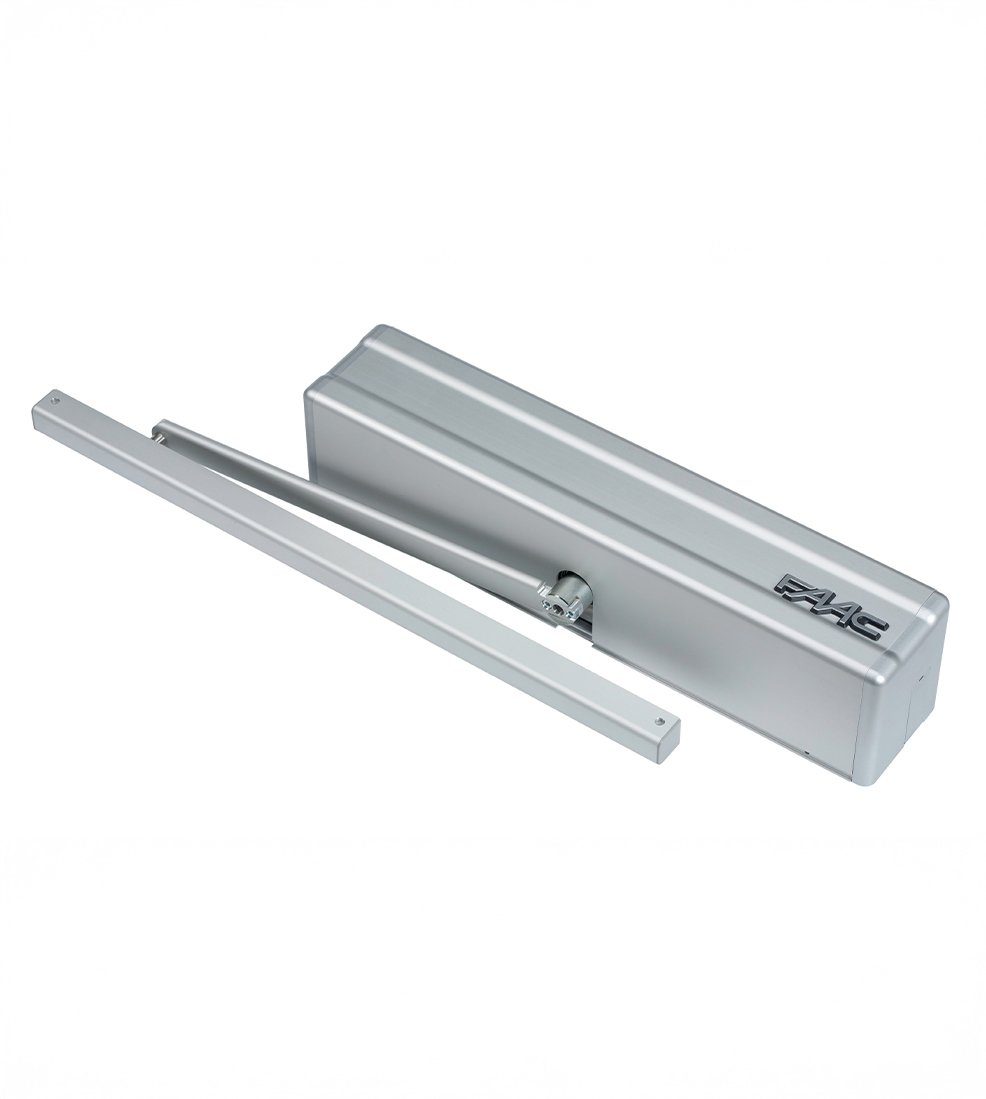

Focus on 950N2 Swing Door Automation

Versatile and stylish

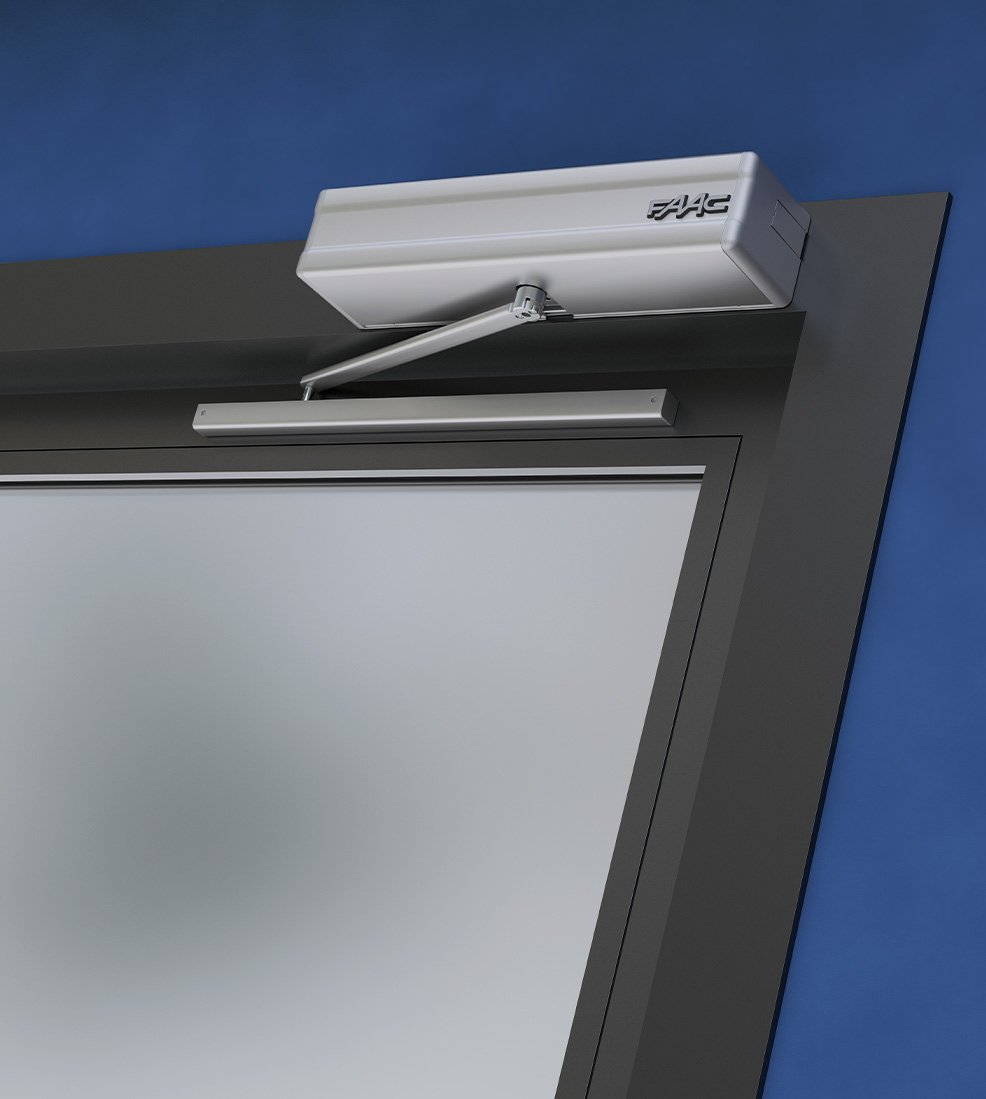

The FAAC 950N2 automations (with spring closing system) can be installed both on the architrave and directly on the structure of the door. The innovatively designed housing cover can be supplied in anodised extruded aluminium or moulded ABS.

The 950N2 automations can also be used to automate double-leaf entrances by setting up two units in a master / slave configuration allowing the double leaf to be moved as if by a single system.

Safe and intelligent

The automation system is equipped with two electronic boards: 950N2 MPS (control board) and 950N2 I/O (input/output board). A microprocessor controls all door activity in real time and a magnetic encoder continuously detects its angular position.

The operating logic (automatic, manual, night, open) can also be selected via an integrated selector. The system is manufactured in conformity with the new European Safety Standards.

The speed and force are programmed according to the dimensions of the door. If an obstacle is detected, the door re-opens immediately and as it closes, it checks, at reduced speed, that the obstacle is no longer present.

Info tecniche

Informazioni sul prodotto 950N2

Lorem ipsum dolor sit

01

Descrizione tecnica

Power supply voltage 220-240 V~ - 50/60 Hz
Max power 100 W
Standby power 5 W
Use frequency 100%
Electric motor Motor powered at 24V
Max accessories load 1A - 24V
Electric lock power supply voltage (N.O./N.C.) 24 V / 500 mA max
Dimensions (LxDxH) 530x160x105 mm
Weight 10 kg
Operation in case of power cut Manual push/pull opening - Spring closing
Max leaf opening angle 100° ÷ 125°
Opening and closing leaf time 4 - 10 s (adjustable)
Partial opening adjustment 10% - 90% of total opening
Pause time 0 - 30 s
Night pause time 0 ÷ 90 s
Encoder As standard
Protection sensor monitoring (EN16005) As standard (may be excluded)
Low energy movement (EN16005) As standard (may be excluded)
Operating ambient temperature -20°C ÷ +55°C
Protection class IP 23 (for internal use only)
Compliance with regulations EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1; EN13849-2

Model	Description	Passage opening	Max leaf weight with articulated arm	Max leaf weight with sliding arm	Item code
950N2	With electronic control unit function selector and anodised aluminium cover	700 ÷ 1400 mm	367 Kg - 700mm 92 Kg - 1400 mm	286 Kg - 700mm 71 Kg - 1400 mm	1054152
950N2	With electronic control unit, function selector and without cover casing	700 ÷ 1400 mm	367 Kg - 700mm 92 Kg - 1400 mm	286 Kg - 700mm 71 Kg - 1400 mm	2050042
Arms	Articulated push arm				390039
	Standard sliding block arm				390040
	Short sliding block arm				390041
