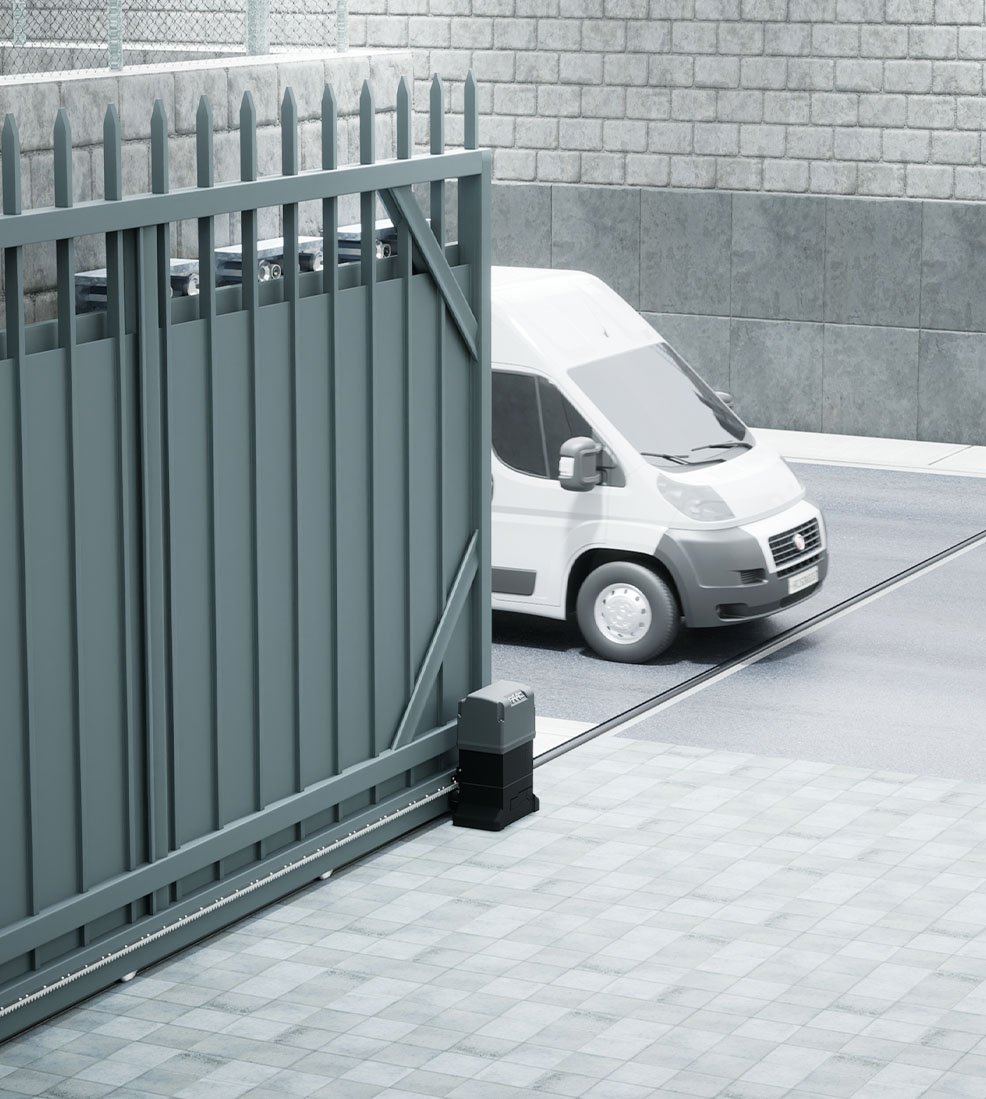

Sliding gate automation

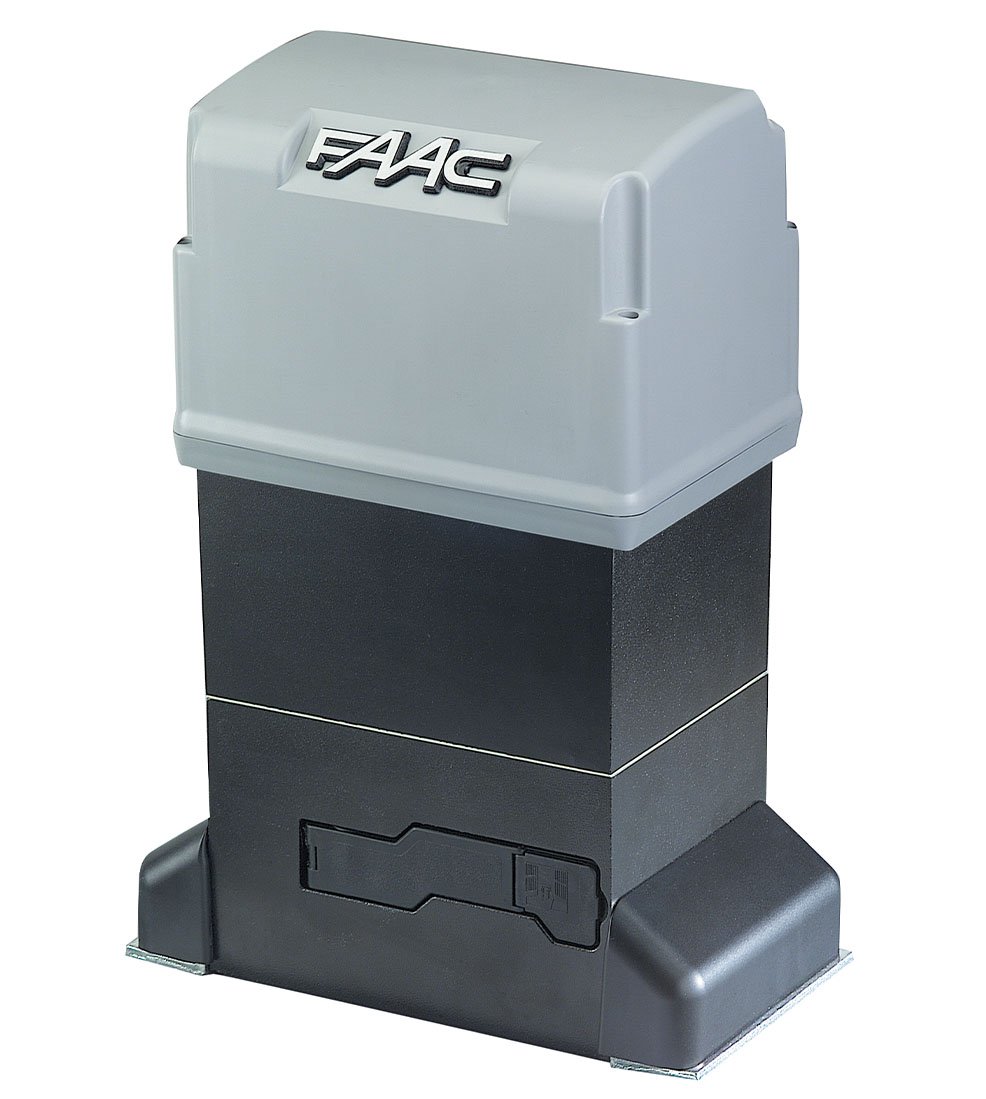

746 C & 844 C 230V Gearmotors

Renewed gearmotors with integrated E781 electronic control unit featuring adjustable speed control levels. Include two dedicated inputs for safety edges (NC or 8.2 KOhm) and Bus2Easy technology
New retroactive motor control with high-resolution encoder, 746 C and 844 C offer smoother acceleration and deceleration ramps, optimised force reduction and adjustable obstacle detection sensitivity
Compatible with the Simply Connect platform and with the new FDS radio technology.

Peso max anta 400 - 600 Kg (746 C) / 1.800 Kg (844 C)
Larghezza max singola anta 40-50 m (746 C) / 40 m (844 C)
Velocità max 9.6 - 12 m/min (746 C) and 9.6 m/min (844 C)
Frequenza di utilizzo Continuous use

Descrizione tecnica Download

Simboli dell'innovazione 6

Gallery / Video

Watch the product video: 746 C and 844 C

FAAC 746 C and 844 C Sliding Gate Gearmotors

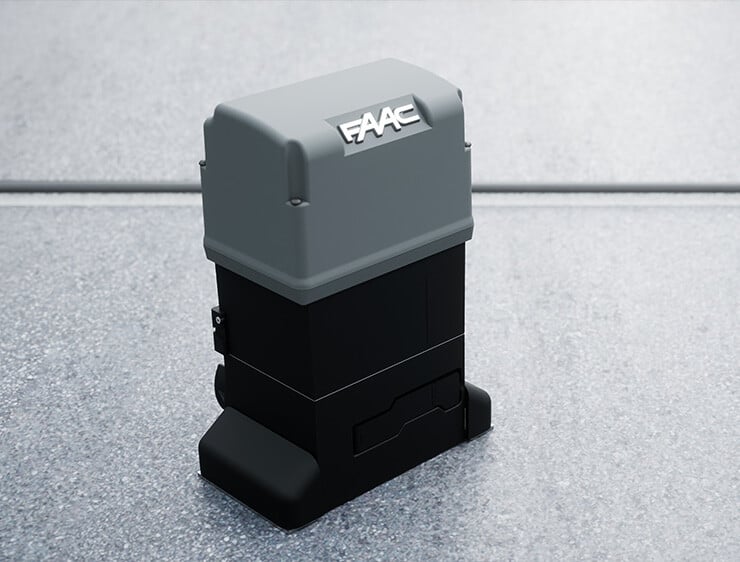

Focus on 746 C & 844 C Sliding Gate Gearmotors

Oil bath technology

• Silent movement. The very essence of oil bath technology. Quiet and efficient, oil bath technology provides superior motion.

• Intensive use. Oil lubricated for efficient heat dissipation and increased use frequency.

• Extended service life. The lubricating action of the oil reduces friction between the components, ensuring a reliable automation, with a long service life and consistent performance over time.

E781: New board, greater compatibility

The E781 integrates a wide range of technologies
and innovations to maximize the compatibility of the
gearmotors with the FAAC product range.

Programming via display and buttons, numerous
configurable parameters, two independent inputs for
safety edges and two programmable outputs.

Info tecniche

Informazioni sul prodotto 746 C & 844 C

Lorem ipsum dolor sit

Descrizione tecnica

Model	Item code
746 C Z16	109745
746 C Z20	109746
844 C Z16	109925
844	109926

Power supply voltage 220-240V ~ 50/60 Hz
Max power 150W (746 C) - 230W (844 C)
Max leaf weight 400 - 600 Kg (746 C) / 1.800 Kg (844 C)
Max leaf length 40 - 50 m (746 C) / 40 m (844 C)
Max leaf speed 9.6 - 12 m/min (746 C) and 9.6 m/min (844 C)

Download

Manuals

File /support/manuals-and-certificates

Catalogue

File com/read/000681578784bfd314d2b

Altri file:

FAAC 746 C - 844 C Brochure

FAAC Sliding Gate Operators
