Automatic barriers

620 230V Automatic Barrier

Patented electronic deceleration and barriers status signalling through traffic management devices.
Two channels integrated detector and 11 pre-set logics
The ideal solution for heavy but not continuous traffic (620 Standard)
Ideal for heavy traffic, where fast opening is a must (620 Rapid)

Lunghezza max asta 4 - 5 m (620 Standard) / 3 - 3.8 m (620 Rapid)
Tempo di apertura 3.5 - 4.5 s (620 Standard) / 2 - 3 s (620 Rapid)
Frequenza di utilizzo 70% (620 Standard) / 100% (620 Rapid)

Descrizione tecnica Download

Simboli dell'innovazione 1

Gallery / Video

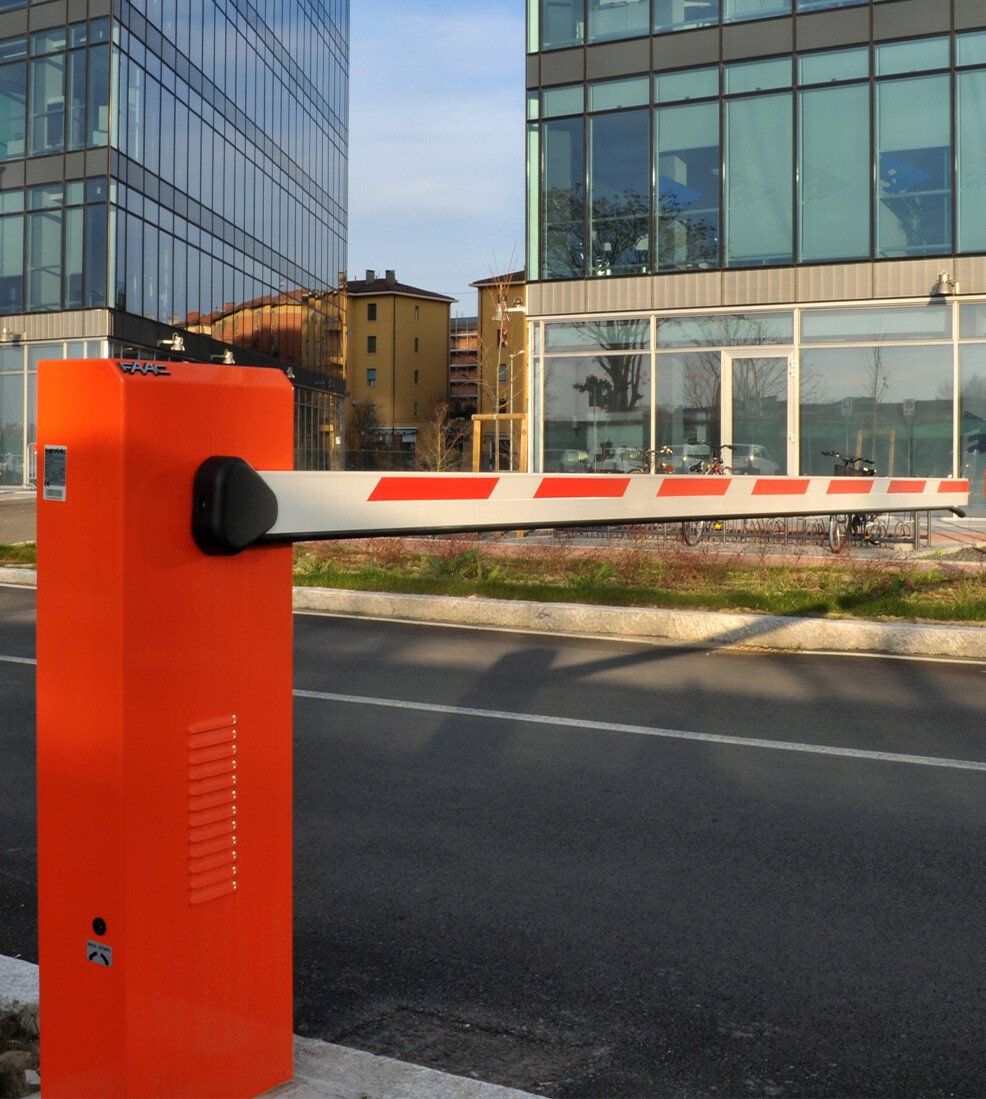

Example installation: Automatic Barrier 620

FAAC 620 Automatic Barrier

Example installation: Automatic Barrier 620

FAAC 620 Automatic Barrier

Example installation: Automatic Barrier 620

FAAC 620 Automatic Barrier

Focus on 620 Automatic Barrier

Info tecniche

Informazioni sul prodotto 620

Lorem ipsum dolor sit

01

Descrizione tecnica

Model	Beam	Beam length (mm)	LH version	RH version
620 STANDARD	620 rectangular standard	1.315 ÷ 2.055	1046268	-
		2.065 ÷ 2.555	1046208	1046408
		2.565 ÷ 3.055	1046278	1046478
		3.065 ÷ 3.815	1046288	1046488
		3.825 ÷ 4.815	1046228	1046428
	620 rectangular standard with lights	1.315 ÷ 2.055	1046268	-
		2.065 ÷ 2.555	1046208	1046408
		2.565 ÷ 3.055	1046278	1046478
		3.065 ÷ 3.665	1046288	1046488
		3.675 ÷ 4.490	1046228	1046428
		4.500 ÷ 4.815	1047508	1047518
	620 rectangular standard with skirt	1.815 ÷ 2.805	1046208	1046408
		2.815 ÷ 3.555	1046218	1046418
		3.565 ÷ 3.815	1046228	1046428
		3.825 ÷ 4.815	1047508	1047518

Model	Beam	Beam length (mm)	LH version	RH version
620 STANDARD	620 round S	0 ÷ 2.300	1046268	-
		2.310 ÷ 2.800	1046208	1046408
		2.810 ÷ 3.300	1046278	1046478
		3.310 ÷ 3.800	1046288	1046488
		3.810 ÷ 4.300	1046228	1046428
		4.310 ÷ 5.000	1046228	1046428
	620 round S with skirt	0 ÷ 2.300	1046268	-
		2.310 ÷ 2.800	1046208	1046408
		2.810 ÷ 3.300	1046218	1046418
		3.310 ÷ 3.800	1046228	1046428
		3.810 ÷ 4.300	1047508	1047518
		4.310 ÷ 5.000	1047508	1047518
	620 round pivoting	1.500 ÷ 2.240	1046268	-
		2.250 ÷ 2.740	1046208	1046408
		2.750 ÷ 3.000	1046278	1046478

Model	Beam	Beam length (mm)	LH version	RH version
620 STANDARD ARTICULATED	620 rectangular articulated A(*) = 1315 ÷ 1814 mm	2.825 ÷ 3.815	1047048	1047148
620 STANDARD ARTICULATED	620 rectangular articulated A(*) = 1815 ÷ 2075 mm	1.825 ÷ 2.815	1047048	1047148

(*) A = H - 1125 (mm) where H is the floor to ceiling height.

Model	Beam	Beam length (mm)	LH version	RH version
620 RAPID	620 rectangular standard	2.065 ÷ 2.555	1046338	1046538
		2.565 ÷ 3.055	1046348	1046548
		3.065 ÷ 3.815	1046358	1046558
	620 rectangular with lights	2.065 ÷ 2.555	1046338	1046538
		2.565 ÷ 3.055	1046348	1046548
		3.065 ÷ 3.665	1046358	1046558
	620 round S	2.310 ÷ 2.800	1046338	1046538
	620 round S	2.810 ÷ 3.300	1046348	1046548
	620 round pivoting	2.250 ÷ 2.740	1046338	1046538
	620 round pivoting	2.750 ÷ 3.000	1046348	1046548

Power supply voltage 220-240V ~ 50/60 Hz
Electric motor Asynchronous single phase
Max power 220 W
Max beam length 4 - 5 m (620 Standard) / 3 - 3.8 m (620 Rapid)
Opening time 3.5 - 4.5 s (620 Standard) / 2 - 3 s (620 Rapid)
Use frequency 70% (620 Standard) / 100% (620 Rapid)

02

Download

Manuals

Manuals

File /support/manuals-and-certificates

Catalogue

Catalogue

File com/read/000681578784bfd314d2b
