Automatic barriers

615BPR 230V Automatic Barrier

Hydraulic operator with opening and closing lock.
Ideal for medium transit frequency and for controlling small and medium private areas.
Standard version equipped with limit switches and anti-crushing hydraulic safety device

Lunghezza max asta 5 m
Tempo di apertura 2.5 - 5.7 s
Frequenza di utilizzo 40% - 50%

Descrizione tecnica Download

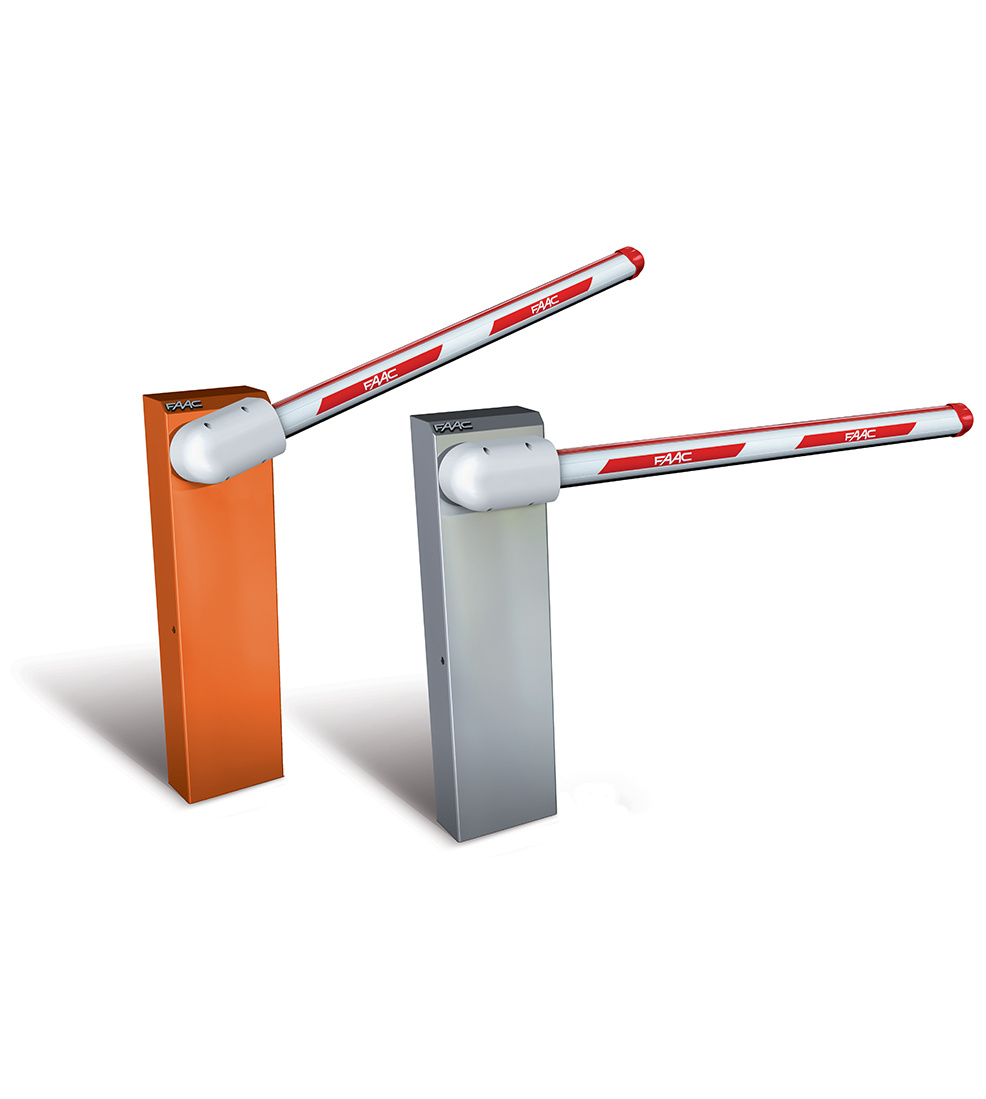

Focus on 615BPR Automatic Barrier

Info tecniche

Informazioni sul prodotto 615BPR

Lorem ipsum dolor sit

Descrizione tecnica

Model	Item code
615BPR Standard Orange RAL 2004	104906
615BPR Standard Grey RAL 9006	104910
615BPR Rapid Orange RAL 2004	104907
615BPR Rapid Grey RAL 9006	104911

Power supply voltage 220-240V ~ 50/60 Hz
Electric motor Asynchronous single phase
Max power 220 W
Max beam length 5 m (Standard) 2.5 m (Rapid)
Opening time 5.7 s (90°) (Standard) 3 s (90°) (Rapid)
Use frequency 50% (Standard) 40% (Rapid)
