Swing gate automation

415 24V & 230V Electromechanical Operator

“In-axis” thrust operator
Available in versions with a 300 mm (max leaf 3 m) and 400 mm (max leaf 4 m) rod strokeHorizontal exit for cables to allow near to ground installation (low installation).

Larghezza max singola anta 2.5 - 4 m (with electric lock)
Frequenza di utilizzo Continuous use (24V) / S3 – 30% (230V)

Descrizione tecnica Download

Simboli dell'innovazione 2

Gallery / Video

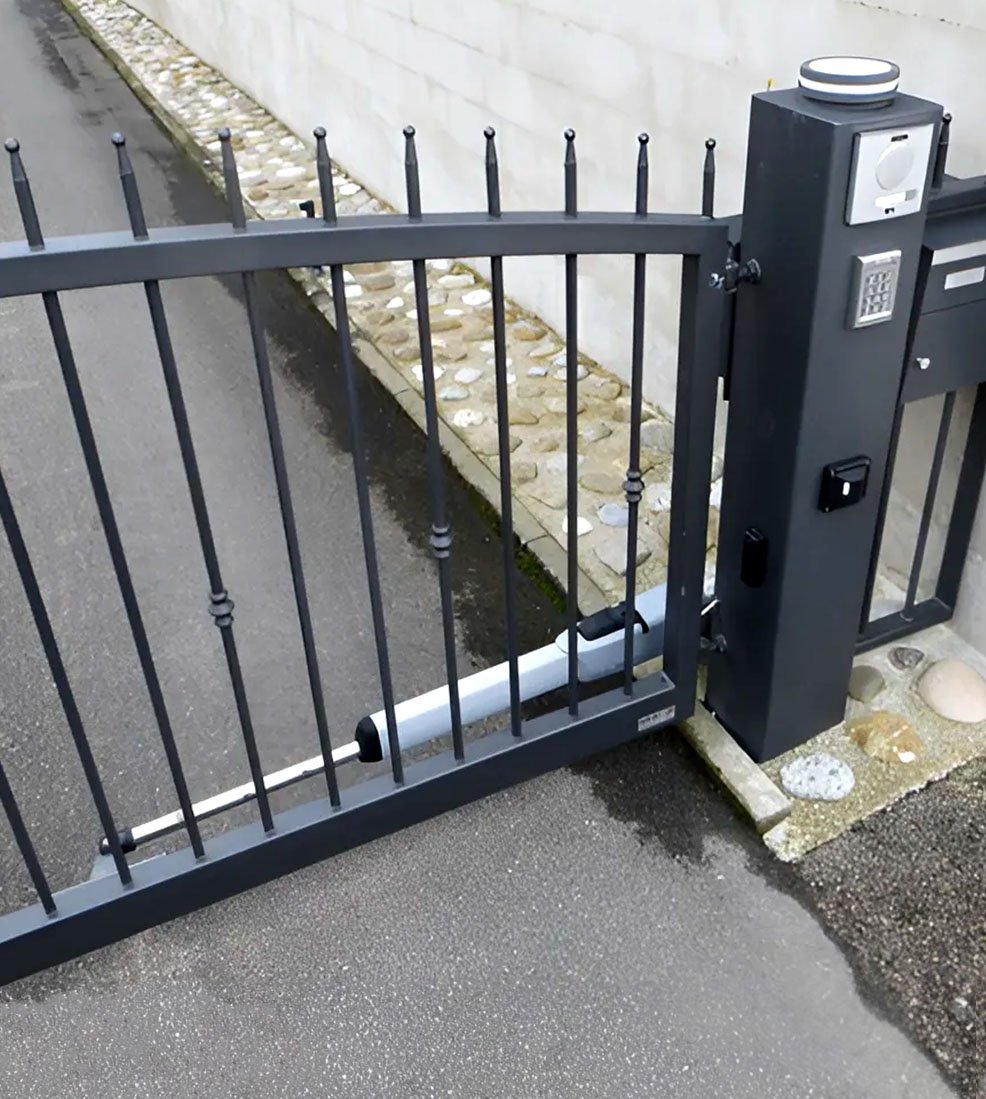

Example installation: FAAC 415

FAAC 415 Swing Gate Electromechanical Operator

Example installation: FAAC 415

Focus on 415 Swing Gate Operator

Maximum adaptability

The FAAC 415 operates quietly and delivers smooth movement. With the optional slowdown function, gate motion becomes even more fluid, helping to preserve the mechanical structure.

No matter which electronic control panel is used, the system supports a wide range of functions such as automatic re-closing and pedestrian opening.

User-friendly key release

In the event of a power failure, a key-operated release allows for manual gate opening.

Info tecniche

Informazioni sul prodotto 415

Lorem ipsum dolor sit

Descrizione tecnica

Model	Item code
415 24V	1044151
415 L 24V	1044171
415 230V	104415
415 L 230V	104417

Power supply voltage 220-240V~ 50/60 Hz
Electric motor With brushes 24V DC (24V version) Asynchronous single-phase (230V version)
Max power 70W (24V version) 300 W (230V version)
Max leaf opening angle 110°
Use frequency Continuous use (24V version) S3 – 30% (230V version)
Max leaf width 2.5 - 4 m (with electric lock)
