Keydom Access Control: Control Panels and Software

FAAC KEYDOM

Your unified access control platform.

KEYDOM is FAAC's platform for access control solutions, designed to be intuitive, ready to use, and simple to deploy. For entry-level systems, this web-based application requires no software installation and supports up to 32 doors and 200,000 users. For larger, on-premises setups, the platform can scale to handle over 4,000 doors and 500,000 users.

The unified user interface across both small and complex systems ensures effortless programming and management. The entire system can be configured easily through a browser on any device connected to the network. Its scalability allows for flexible architectures that can be tailored to meet specific requirements and flow logic.

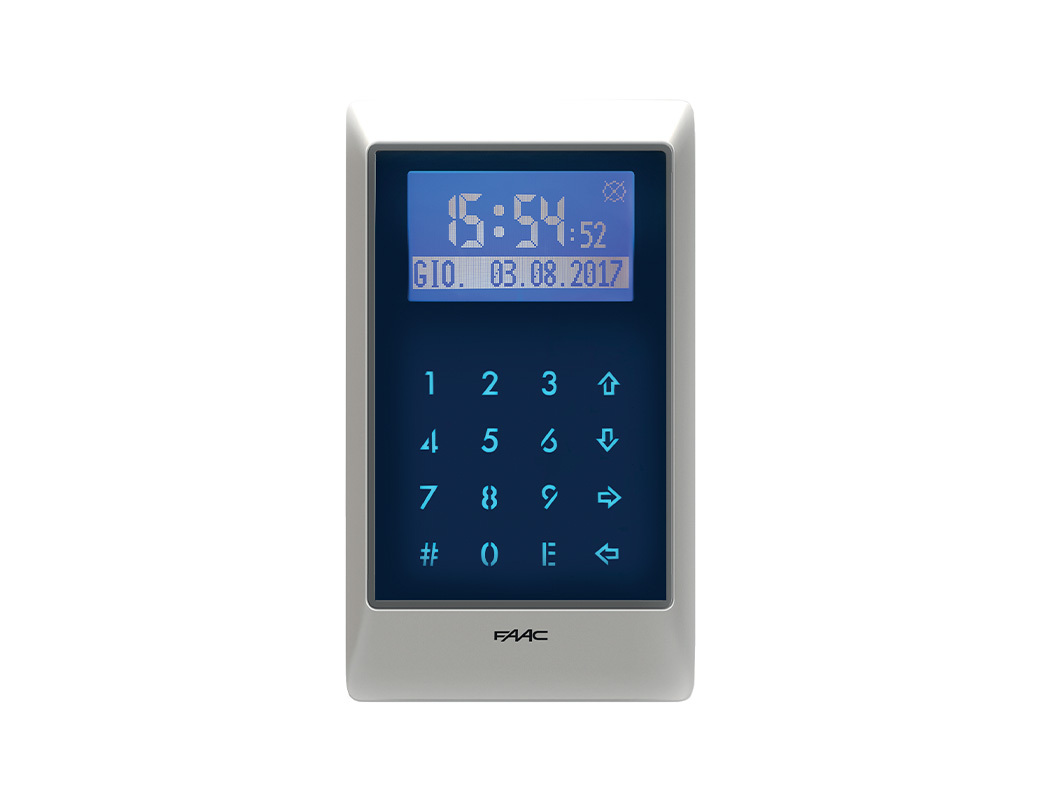

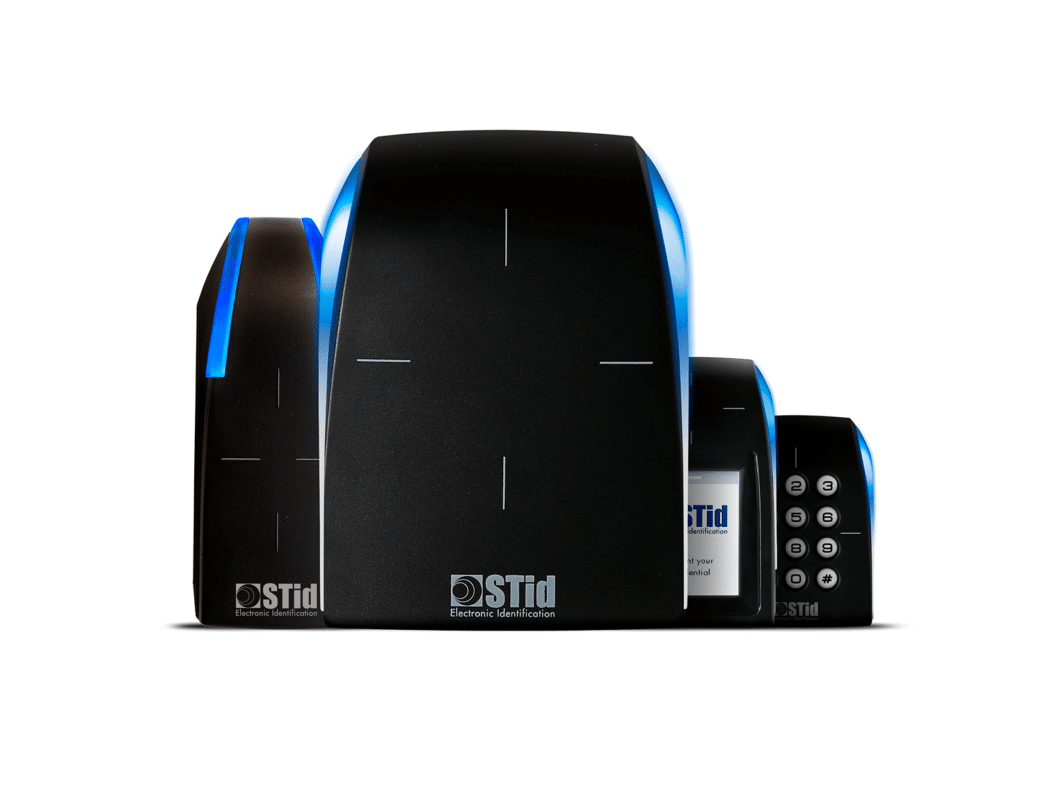

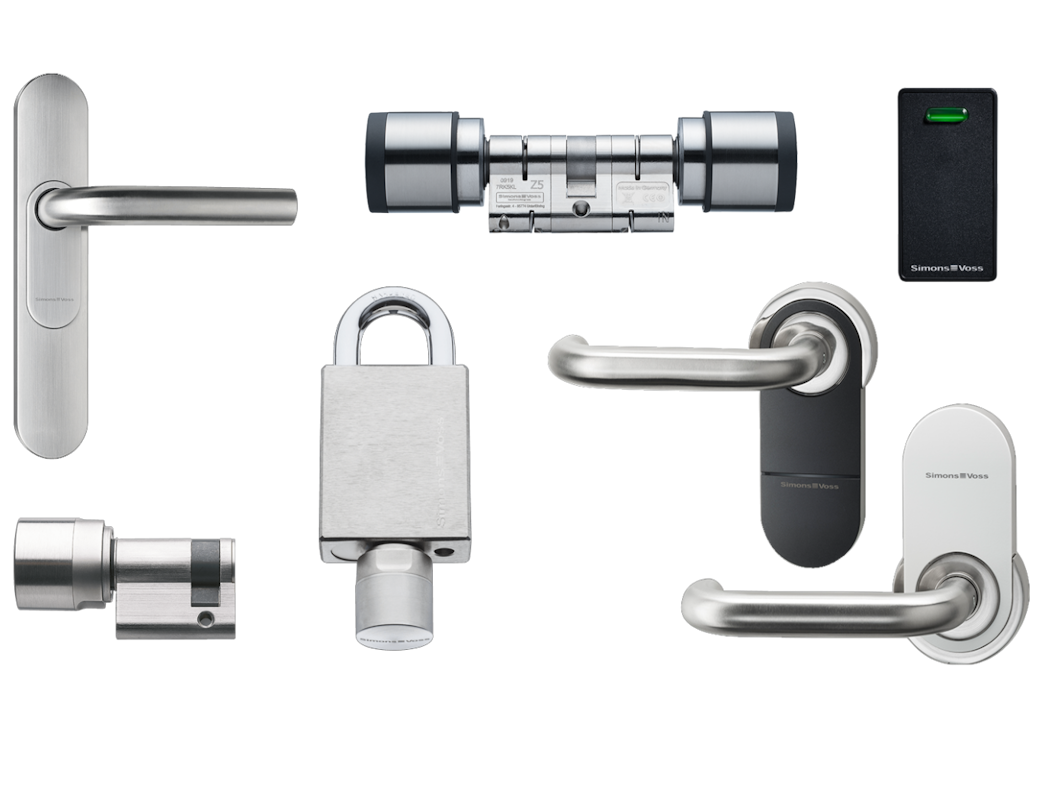

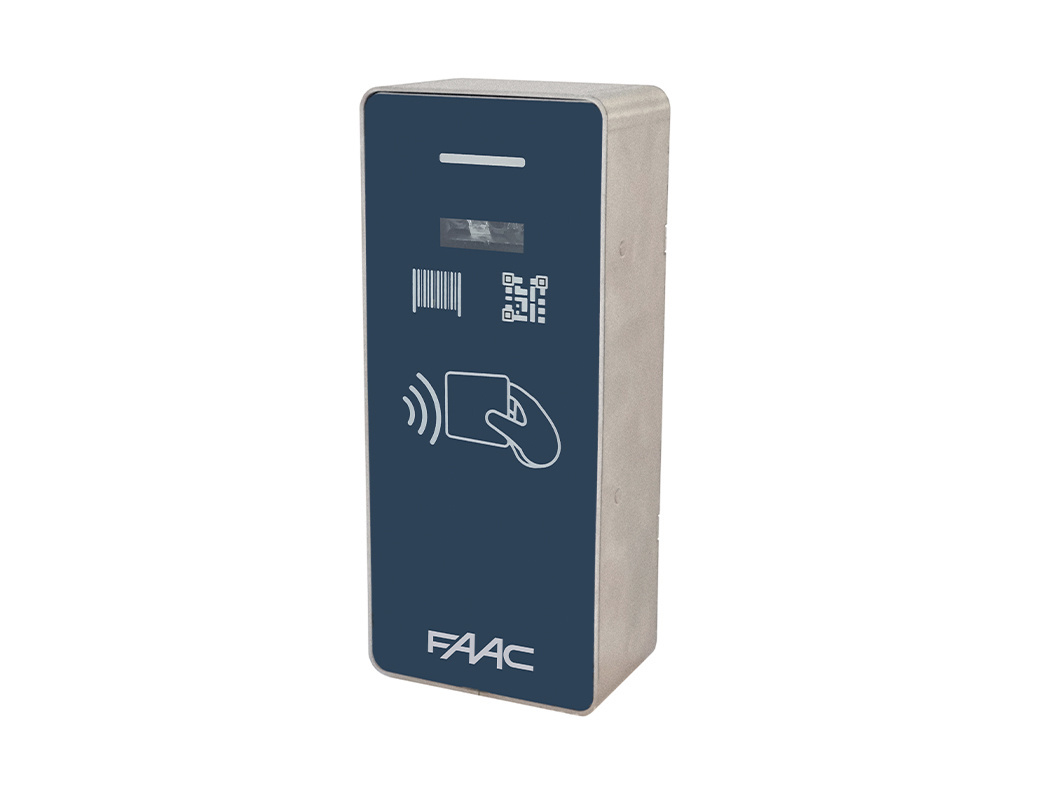

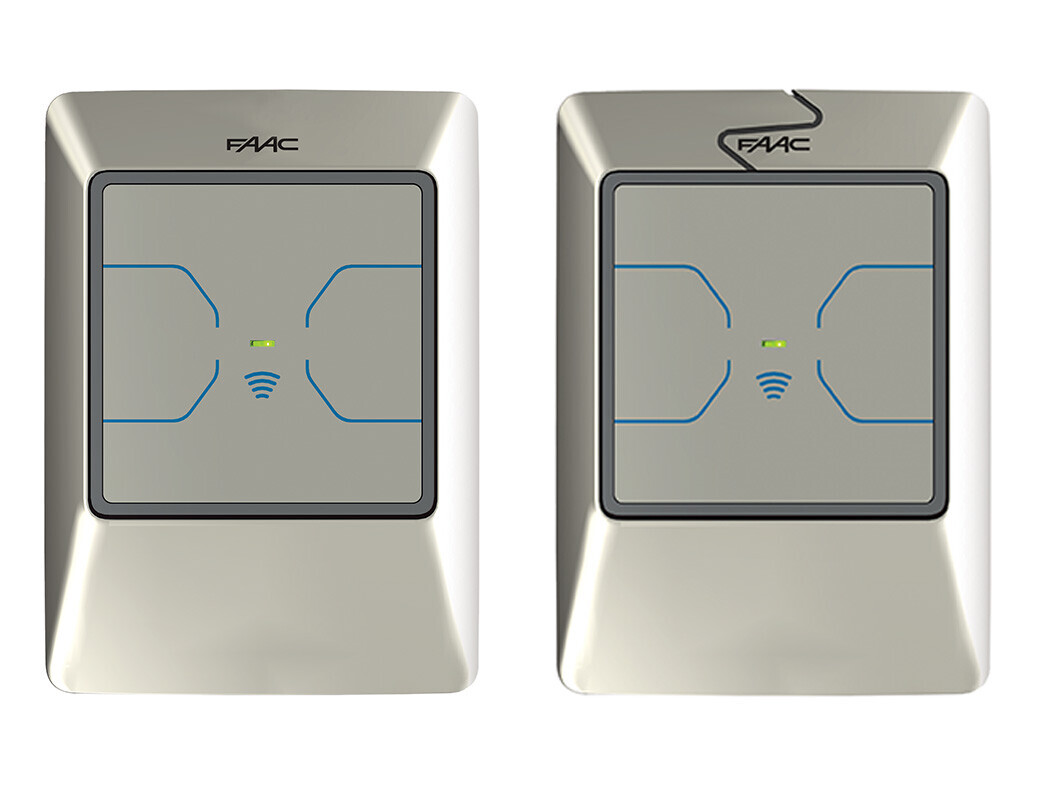

Access control is facilitated through a wide range of industry-leading readers and validators, including PIN and PROX readers, Bluetooth readers, Simons VOSS wireless locking solutions, QR and barcode readers, vehicle tag readers, ANPR cameras, and biometric readers.

FAAC has a long and proud history in all aspects of Automation and Access Control spanning over sixty years. KEYDOM is the latest evolution of our market leading experience designed to be integrated with the full suite of FAAC solutions as well as third party access products.

The Network Controller is the central data concentrator. It utilises a powerful and compact System-On-Module (SOM) as its base. The proprietary Keydom software resides on the unit and is fully configurable via a standard web browser.
System architecture with embedded software, requires no software installation as it is preinstalled and included in the Network Controller.
The application is entirely web based and is conveniently configurable via a browser on any device connected to the same network.
RS485 and LAN ports for maximum flexibility in wiring and possible reuse of existing wiring.
Manages up to 200,000 users (expandable with Enterprise version)
"SOM" version manages installations with up to 32 Access Points.
Enterprise version caters for over 4000 doors and 500,000 users via software and on-premises solution.

Single central unit for any type of gateway to be controlled (pedestrian or vehicular)
Manages a bidirectional (entry/exit) pedestrian or vehicular gateway.
DOOR CONTROLLER gate control unit is designed to be able to realise all gate connections (input/output) in a simplified way by optimising wiring works.
It manages readers with multiple communication protocols to provide maximum flexibility of choice and extreme scalability of the system
Features include:
- 2 relay outputs expandable up to 6 outputs with dedicated expansion card
- 3 inputs expandable up to 7 inputs with dedicated expansion card
- Spinet, RS232, Wiegand and Magnetic Stripe ports for connecting any type of reader.
Manages up to 200,000 users and 8,000 events offline.
