    Automatische Schuifdeuren

    AS3000 Series Sliding Door Automation

    Product range

    • AS3010 leaf weight up to 120 Kg
    • AS3020 leaf weight up to 200 Kg
    • AS3030 leaf weight up to 300 Kg

    Available also in Telescopic version and Redundant with TÜV Certification for escape routes.

    Compliance with European Standards

    Compliance with the European Standard EN16005 for use on escape routes and the European Standard EN13849 PI.D Cat.2 (Redundance of the automation).

    Low power consumption

    In standby mode, energy consumption is reduced to a maximum of 0.5W, in compliance with EU Directive 2009/125/EC and EU Regulation 2023/826.

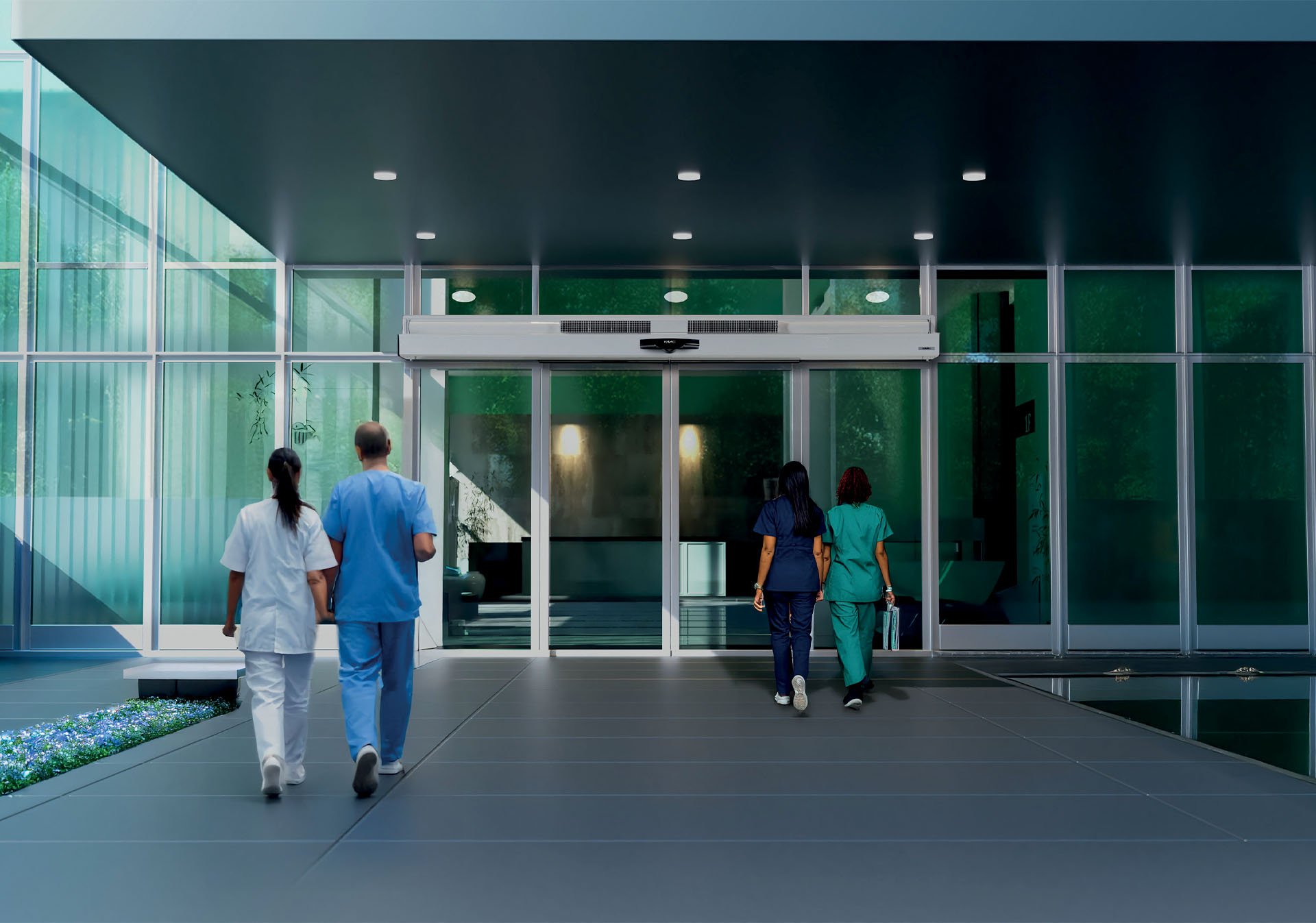

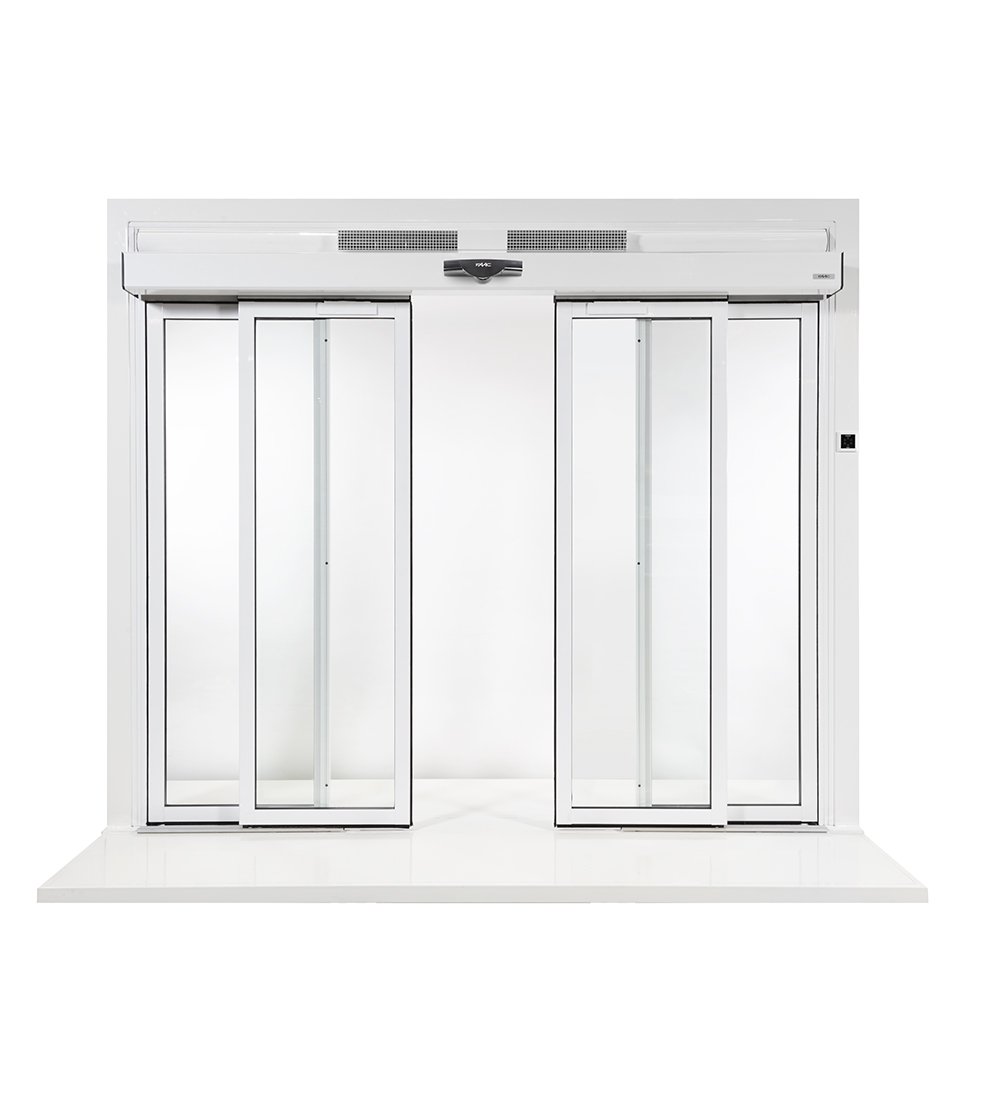

    AIRSLIDE System (FAAC patent)

    Which integrates an automatic sliding door with a built-in air curtain, combining sleek design with energy efficiency. It reduces energy dispersion, enhances air quality by limiting external pollutants, and ensures optimal comfort by minimizing drafts.

    TK20/TK35/TK50 Door profiles

    20mm, 35mm, 50mm thick aluminium alloy profiles.

    • Max. gewicht schuifraam 120 Kg / 100 + 100 Kg (AS3010)
      200 Kg / 150 + 150 Kg (AS3020)
      300 Kg / 200 + 200 Kg (AS3030)
    • Doorgang 2.500 - 4.800 mm

    Focus on AS3000 Series

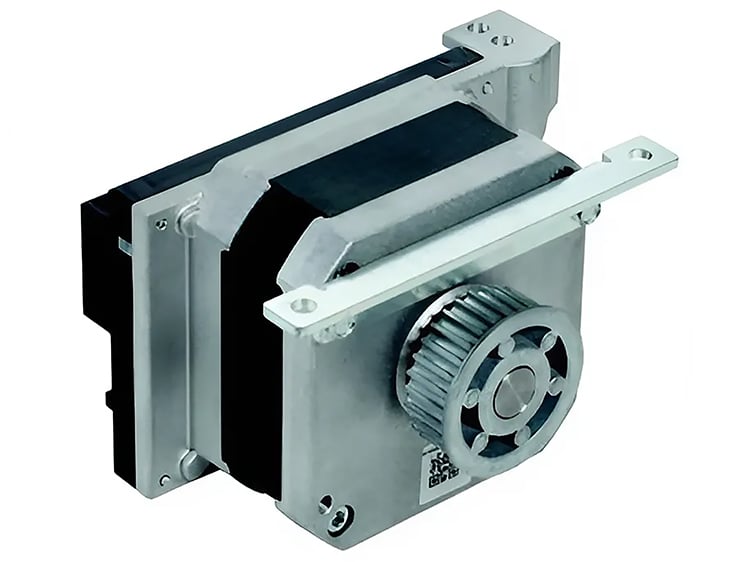

    Brushless Direct Drive Motor

    •    Long-lasting Brushless Motor: experiences less wear and requires less maintenance.
    •    Direct Drive: eliminates intermediate components between the motor and the load.
    •    Silent: smoother and quieter thanks to the cushioned sliding guide.
    •    High performance: rapid acceleration, impressive speed, high power, and greater efficiency.
    •    Exclusive FAAC patent on Redundant Automation (RD): ensures reliable emergency opening.

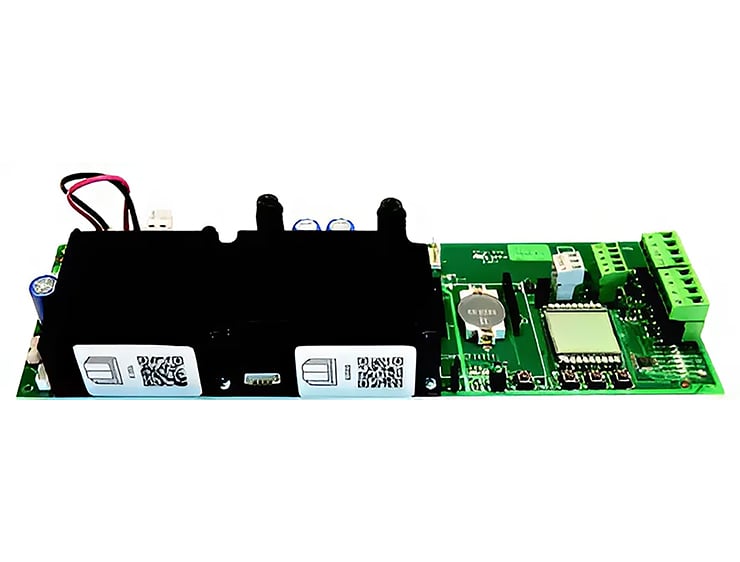

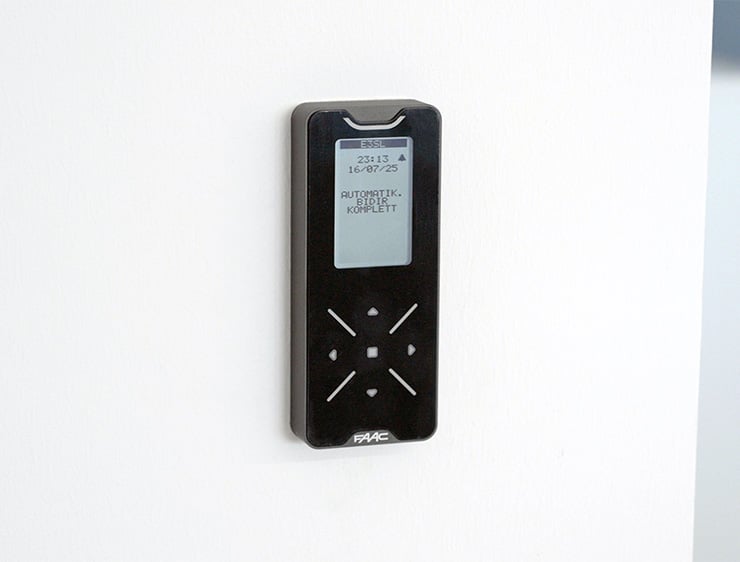

    E3SL Control Board

    •    Simply Connect ready: allows programming and remote management of the automation.
    •    Intercom function: to optimize wiring and communication between automation systems (with E3XP Expansion Board).
    •    2 configurable Inputs and 2 configurable Outputs: to customise the system according to project specific requirements, with CAN BUS technology, the most versatile, efficient, and reliable communication system (up to 10 Inputs and 6 Outputs with E3XP).

    Technische informatie

    Productinformatie AS3000 Series
