XP 20 D Adjustable Wall Photocells

XP 20 D

System with traditional 24V transmitter and receiver power supply.

XP 20B D

System with BUS 2easy power supply, just two 24V non-polarized wires, possibility of installing up to 16 pairs of photocells on the same system and protection from interference produced by external light sources (such as vehicle LED headlights).

XP 20W D

System with traditional 12/24V receiver power supply and traditional or batteryoperated transmitter power supply. It avoids having to lay a cable to the transmitter (battery) and features selectable channels which allows the installation of up to 4 pairs of photocells and protection from interference produced by external light sources (such as vehicle LED headlights).

Descrizione tecnica Download

Simboli dell'innovazione 3

XP 20 D Adjustable Wall Photocells

Transmitter and receiver with modulated infrared beams

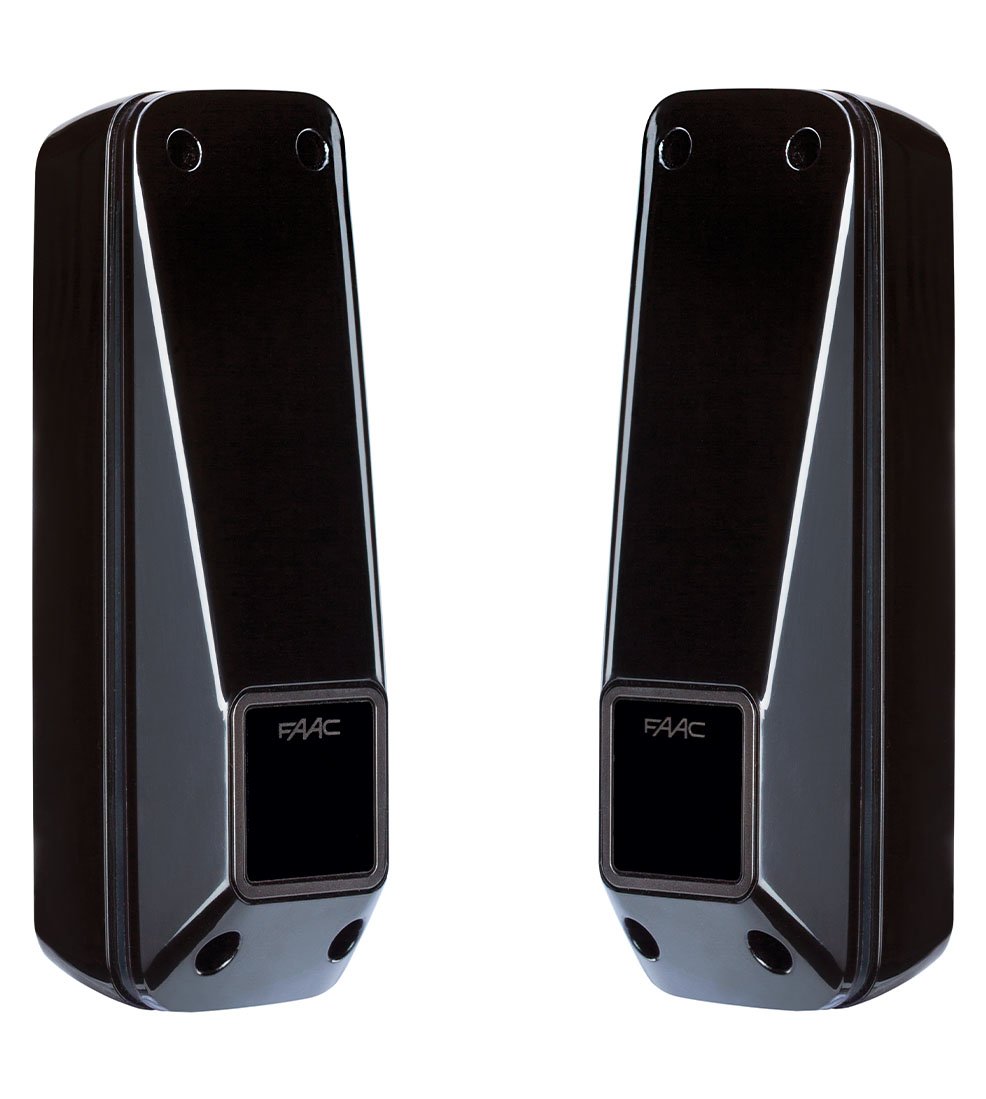

The new XP 20 D adjustable photocells comprise a transmitter and a modulated infra-red receiver with a range of up to 20 m. The obstruction of the light beam causes the receiver status to change.

Accurate and reliable adjustment

The photocell is housed in a swivel support fitted with a high-performance lens designed to optimise the efficiency of the beam in any direction. The swivel support is locked in the desired position thanks to a hard-wearing quick-fit swivel lock (which can be removed with a screwdriver where necessary).

Info tecniche

Informazioni sul prodotto XP 20 D

Lorem ipsum dolor sit

01

Descrizione tecnica

TECHNICAL SPECIFICATIONS	XP 20 D	XP 20B D	XP 20W D
Power supply voltage	24V DC / 24V AC	via BUS 2easy, two 24V nonpolarized wires DC	Rx: 12-24V AC / V DC Tx: 12-24V AC / DC or battery-operated (3 VcR2 - not included)
Nominal range	20 m	20 m	20 m
Type of installation	wall-mounted	wall-mounted	wall-mounted
Dimensions (LxHxD)	41 x 130 x 42 mm	41 x 130 x 42 mm	41 x 130 x 42 mm
Horizontal adjustment angle	-90° +90°	-90° +90°	-90° +90°
Self-alignment angle	±7° (20m) ±13.5° (5m)	±7° (20m) ±13.5° (5m)	±7° (20m) ±13.5° (5m)
Obstacle detection time	13ms	20ms	40ms
Absorbed current	Rx (30mA) + Tx (20mA)	Rx (10mA) + Tx (10mA)	Rx (30mA) + Tx (40mA battery-operated or 5mA at 24V DC)
Protection class	IP54	IP54	IP54
Max contact capacity	60VA/24W
Operating room temperature	-20°C ÷ +55°C	-20°C ÷ +55°C	-20°C ÷ +55°C
		Possibility of installing up to 16 pairs of photocells on the same system	Possibility of installing up to 4 pairs of photocells on the same system
